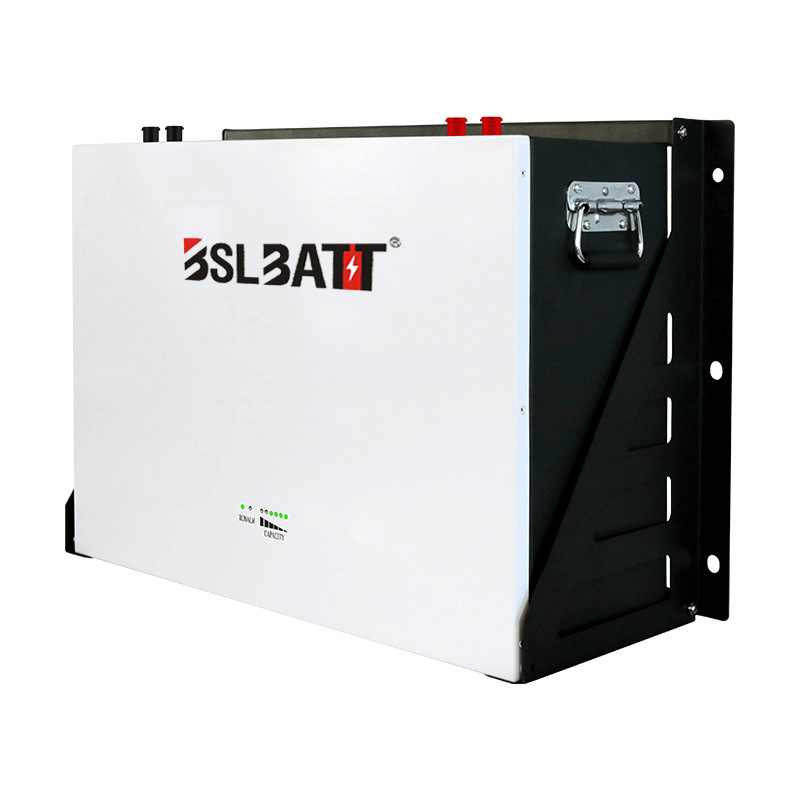

BSLBATT 24V 100Ah Powerwall - Green Energy Storage System

The BSLBATT Powerwall is a fully integrated battery energy storage system for residential or light commercial use. Its rechargeable lithium-ion battery pack provides energy storage for solar self-consumption, time-based control and back-up.
  • B-LFP24-100PW
  • BSLBATT
MOQ:
Capacity::
Power::
Size:
Application::

Product Description

Powerwall Battery Work


The BSLBATT Powerwall is a fully integrated battery energy storage system for residential or light commercial use. Its rechargeable lithium-ion battery pack provides energy storage for solar self-consumption, time-based control and back-up.

In addition, the Powerwall's multi-protocol interface allows easy connection to any house or building. The compact design not only revolutionises market-leading energy density, but is also easy to install, enabling homeowners to quickly realise the benefits of reliable, clean power.



When you install the BSLATT Powerwall it has many features including setting up any back-up circuits, configuring the software correctly and integrating it with solar and electricity meters. That's why it's important to choose BSLATT's Powerwall installation program. From installation to use, BSLATT will provide thorough support with a guided service, so we have oversight of the entire process, including quality.


bslbatt battery safety

                         Safety


BSLBATT equips all battery series with safety components, including the BMS (Battery Management System), to protect the battery from short circuits and to control the temperature and pressure of the battery.


                     Read More



bslbatt battery energy

                  Energy Density


150 watt-hours of electricity can be stored in a 1 kg lithium-ion battery, which is three times more energy dense than a lead-acid battery. Lithium batteries have a greater storage capacity even in a smaller space.



                    Read More


Maintenance Free               Maintenance Free


In contrast to lead-acid batteries, lithium batteries do not require additional ventilation and regular acid refills. Plug and Play is supported regardless of the time and place of use.



                   Read More



Detailed specifications


         Model

                                            BSLBATT LFP-24V Battery PACK









      Electrical         Characteristics

Nominal Voltage

24V (25.6V)

Nominal Capacity

100Ah/200Ah/300Ah

Energy

2560Wh/5120Wh/7680Wh

Internal Resistance

≤60mΩ

Cycle Life

≥5000 cycles @ 80% DOD, 25℃, 0.5C ≥4000 cycles @ 80% DOD, 40℃, 0.5C

Design Life

≥10 years

Months Self Discharge

≤2%,@25℃

Effificiency of Charge

≥98%

Effificiency of Discharge

≥100% @ 0.2C ≥96% @ 1C







        Charge

Charge Cut-off Voltage

54.0V±0.1V

Charge Mode

1C to 54.0V, then 54.0V charge current to  0.02C (CC/CV)

Charge Current

100A

Max. Charge Current

130A

Charge Cut-off Voltage

54V±0.2V(Floating charge voltage)



      Discharge

Continuous Current

100A

Max. Continuous Discharge Current

130A

Discharge Cut-off Voltage

38V±0.2V






  Environmental

Charge Temperature

0℃~60℃ (Under 0℃ extra heating mechanism)

Discharge Temperature

-20℃~60℃ (Under 0℃work with reduced capacity)

Storage Temperature

-40℃~55℃ @ 60%±25% relative humidity

Water Dust Resistance

Ip21 (The battery cabinet supports Ip55)






     Mechanical

Method

8S1P/8S2P/8S3P

Case

Iron (Insulation painting)

Dimensions

780 x630 x160(220)mm

Weight

Approx:30kg/48kg/70kg

Gravimetric Specifific energy

Approx:92Wh/kg

Protocol (optional)

RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter


         Other

SOC Light

6 * LED

Display Screen

LCD(Optional)

Limit charge current

20A


About BSLBATT


home battery storage supplier BSLBATT

Since 2003, BSLBATT provides electric energy more efficiently and reliably as best solution. Powerwall charges by day and powers at night for residential solar system with compact, affordable and easy installation features.
