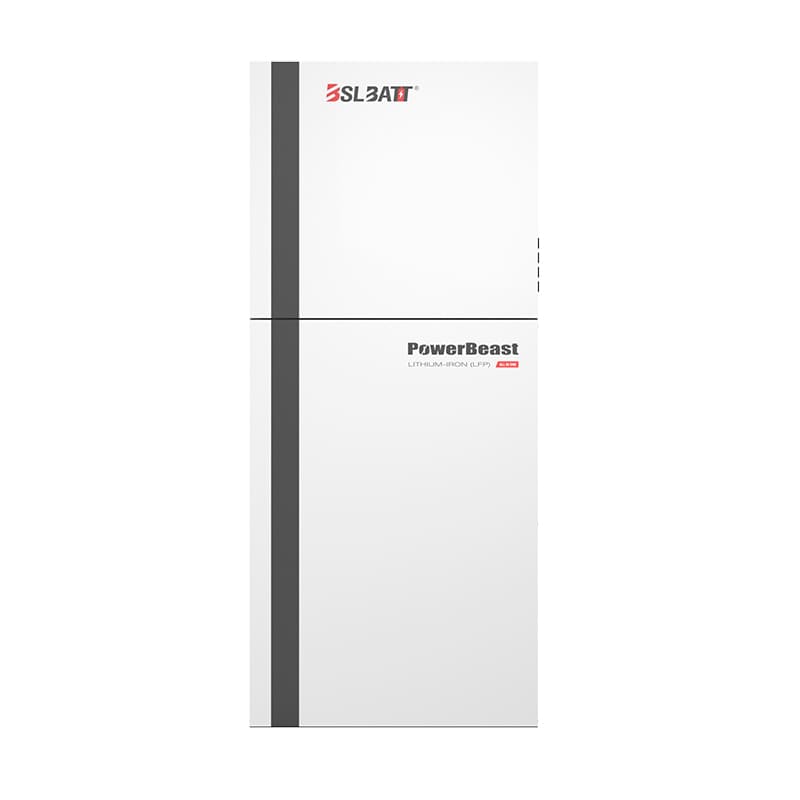

All in one Battery 2.5KWh 5kWh 24 Volt Solar Battery ESS with Inverter BSLBATT

All in one battery is BSLBATT's low-voltage battery storage system for indoor or outdoor installations with a canopy. It uses a 24V lithium battery pack, available in 2.5kWh and 5kWh capacities, and can be expanded through a modular design concept. With the All in one battery, a high degree of energy self-sufficiency is now possible, which will significantly reduce your electricity bill. With home solar installations, homeowners can perfect their PV installations to continue to power their homes in the event of a power outage or blackout. In the event of a power failure, the storage system will automatically switch to island operation, thus ensuring power supply. BSLBATT All-in-one battery system is available for all brands of solar panels.

  • All in One ESS Battery
  • BSLBATT
Battery combination:
Rated voltage:
Capacity:
Application:
Availability:

Product Description

All in one battery 24V solar battery

  All in One ESS Battery



Product Description


Your self-produced electricity is in good hands with BSLBATT All-in-one battery - regardless of whether it is destined for your own home, a multi-family house, a commercial or industrial operation or e-mobility. Our entire product range is based on a modular concept that is based on the latest technologies and meets and even exceeds all requirements for modern solar energy storage systems. Thus, all BSLBATT components can be easily integrated into existing and new systems from small to large and ensure safe and efficient operation in their application.


48v 100ah lithium ion batteryhome battery storage (2)

5kWh 10kWh home battery



The BSLBATT hybrid inverter can output direct current (DC) from a rooftop solar PV array to alternating current (AC), so your home or business load can use it directly.The inverter has Grid monitoring, Independent disconnection device (MSD, Mains monitoring with allocated Switching Devices).


Product Highlights

Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

No Thermal Runaway with Fire Propagation

No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling

Extended Operating Temperature -4 to 140F

98% Efficiency Rate

Fast Charge & Discharge Rates

>6000 Cycle Life with a 10 Year Warranty

Cycle One to Several Times Per Day

Seamless Integration with All Industry Standard Inverter/Charge Controllers

Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation

Modular, Scalable & Proven Performance

Made in China.

48v lithium ion battery 100ah price


battery powered homes

SMART BATTERY MANAGEMENT SYSTEM


The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection. This high-performance BSLBATT Lithium Battery has a large power capacity, with a fast charging and continuous discharge power, providing 98% efficiency. The advanced Lithium Ferro Phosphate (LFP) technology operates a wider temperature range to deliver the most dependable performance. LFP has been proven to be one of the safest Lithium technologies in the industry and is manufactured to the highest standards.

48v 100ah lifepo4 battery


48v lithium ion battery 100ah


The BSLBATT All-in-one ESS Battery is the ideal energy storage solution for grid-tied or off-grid solar installations. Lower your utility bill by avoiding the need to buy electricity at peak times with the BSLBATT Lithium Battery LFP-10. Order online or by PHONE +86 752 2819469


Specification


BSLBATT Inverter
AC Parameters
Rated Input Power 3KW

3KW

Input Voltage AC110V

AC220V

Input Frequency 50Hz/60Hz (Automatic adaptation)

50Hz/60Hz (Automatic adaptation)

Rated Output Power

3KW

3KW
Maximum Output Power 66000VA

10000VA

Output Voltage

3*AC110V

3*AC220V

Waveform

Pure sine wave

Pure sine wave


MPPT Parameters
Output Power

1400W

1400W

PV Operating Voltage Range

30-100Vdc

30-100Vdc

MPPT Voltage Range

30-85Vdc

30-85Vdc

Solar Charging Current

0-60A

0-60A


Specifification


Model                                             BSLBATT 24V Battery PACK


          Electrical Characteristics

Nominal Voltage 25.6V(16series)
Nominal Capacity 105Ah/210Ah
Energy 2.68kWh/5.37Kwh
Working voltage range 20~29.2V
Cycle Life ≥6000 cycles @ 80% DOD, 25, 0.5C ≥6000 cycles @ 80% DOD, 40, 0.5C
Design Life ≥10 years
Months Self Discharge ≤2%,@25℃
Effificiency of Charge ≥98%
Effificiency of Discharge ≥100% @ 0.2C ≥96% @ 1C
Charge &  Discharge Discharge Current 100A
Max. Discharge Current 110A
Charge Current 100A
Max. Charge Current 110A


        Environmental

Charge Temperature 0℃~60℃ (Under 0℃ extra heating mechanism)
Discharge Temperature -20℃~60℃ (Under 0℃work with reduced capacity)
Storage Temperature -40℃~55℃ @ 60%±25% relative humidity
Water Dust Resistance Ip21 (The battery cabinet supports Ip40)



      Mechanical

Method 15S1P/15S2P/15S3P/15S4P
Case Iron (Insulation painting)
Dimensions

455*332*458MM
455*332*600MM

Weight Approx:41.5KG/65.5KG
Battery type Lithium iron phosphate
Protocol (optional) RS485/WIFI


      Other

SOC Light 6 * LED
Display Screen LCD(Optional)
USB output 2*5V2A
12VDC output 2*12V3A
Cooling method Natural cooling
Limit charge current 20A

Strong & Durable Structure

Look no further than BSLBATT's home lithium battery! Our patented rhombus 18650 LiFePO4 cells ensure high performance and safety, while the screw fastening design ensures long-lasting reliability. Plus, our BMS system provides intelligent protection against overcurrent, overvoltage, short circuit and thermal runaway. So why wait? Get your very own BSLBATT All-in-one battery today!

Why Choose us?

1. Our company is a high-tech enterprise with 18 years’ experience in R&D battery.


2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.


3. Flexible customizing and manufacturing accepted.


4. We promise to provide high-quality products with our professional R&D team, accomplished and experienced workers, and advanced equipment.


5. Strict management and control for every progress in producing and 100% QC inspection before shipment.


6. We provide service of sample and prompt shipment and sending someone to follow up on the progress of the logistics after delivery.


7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.


powerwall 2 battery powerwall inverter
battery powered homes power wall charger
buy powerwall solar battery pack for home
cost of powerwall 10 kwh battery price

                                   Performance Characteristics

Powerwall Long Life
Powerwall Different current
Powerwall Charging

The BSLBATT home storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn’t shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.

Testimonials

“BSLBATT batteries eliminated the most difficult challenges we face when building microgrids in remote tropical locations. The batteries are much easier to transport and they have a good chance of lasting the entire 20 years. This means BSLBATT batteries generally pay for themselves in under 4 years!”
