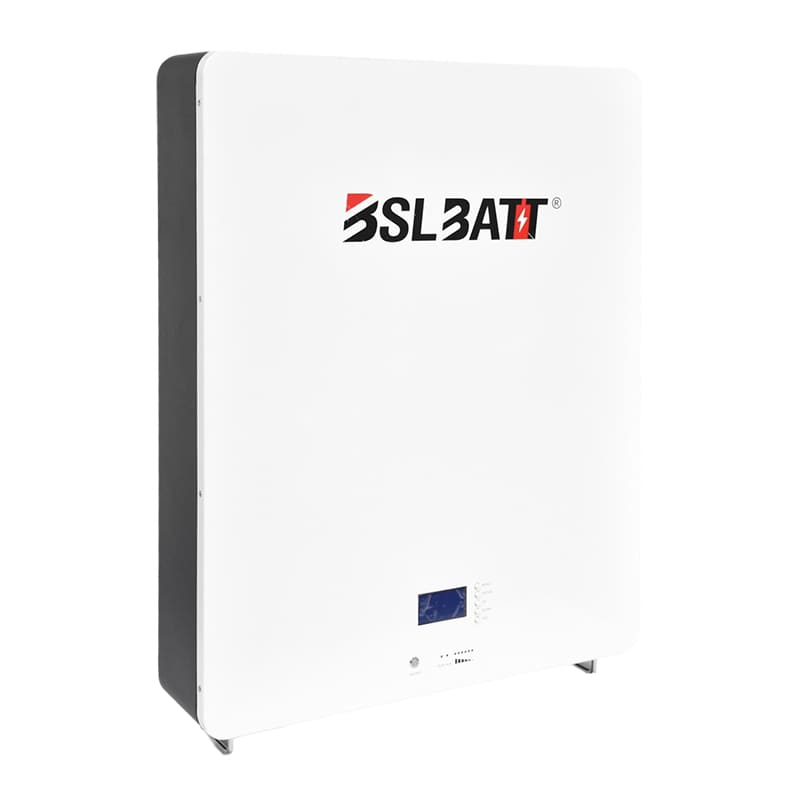

BSLBATT 48V 100AH LiFePO4 Power Wall Home Battery ESS Energy Storage System

The Home Battery Backup Power (48V LiFePo4 Powerwall Battery)
Powerwall Battery is a high-tech product developed to meet the requirements of the new home backup power supply. It has the characteristics of integration, miniaturization, light weight, intelligence, standardization, and environmental protection.BSL-48V-100Ah has a lithium (LiFePO4) battery storage capacity of 5kWh, allowing you to stay away from the grid as you like.

  • B-LFP48-100PW
  • BSLBATT
Mounting::
Inverter: :
Weight::
Nominal Capacity::
Round Trip Efficiency: :

Product Description

5kwh battery

With a modern design and seamless reliable home backup power, BSLBATT Powerwall - the world’s most popular energy storage solution – Even if your solar journey does not start with BSLBATT, you can still enjoy our home battery system and home battery backup power system at home.


Affordable Energy Storage Has Arrived.


Use solar energy day and night

 Backup power included as standard

 High Energy Density

 Most Compact and Lightweight Storage in the Market

 Flexible Installation

 Dimensions: 399.5 mm x 563 mm x 185 mm

 Weight [Kg]: 51

 Operating Temperature Range: –20°C to 50°C (–4°F to 122°F)

 Warranty: 10 years

 Storage TemperatureIP Class55


Key Benefits

BSLBATT Powerwall offers you the world’s most popular energy storage solution, merging modern design with incredible functionality. Combine a BSLBATT Powerwall with your existing solar or a BSLBATT Solar Solution to power your home with clean, sustainable energy 24/7.

Powerwall consists of a 5kWh lithium-ion battery pack, liquid thermal control system, an integrated inverter and software that intelligently dispatches electricity when it’s needed most. The unit can be mounted seamlessly on a wall or on the ground, and the water-resistant and dustproof enclosure allows for installation outdoors. Powerwall is also a touch-safe, meaning no live wires or dangerous vents.


Powerwall also provides backup power. The unit can detect an outage, disconnect from the grid, and automatically restore power to your home in a fraction of a second. You won’t even notice that the power went out. Your lights and appliances will continue to run without interruption.


1. Solar day and night – Powerwall stores solar to continuously power your home with sustainable energy day and night.


2. A self-powered home – Use solar and Powerwall to reduce reliance on the grid and create a zero-emissions home.


3. Back-up power – Protect your home from a power outage with seamless and reliable backup power.


4. Control your energy – Seamlessly monitor and automatically manage your Powerwall, solar panels, Model S or Z with the BSLBATT App.


5. Stay protectedreserve a certain percentage of your Powerwall to protect your home from a utility outage and extend the hours of backup.


6. Better over timeWith over-the-air software updates, Powerwall will continue to improve and adapt to your lifestyle.


7. Compact and simplePowerwall is a completely automated system that installs easily and requires no maintenance.


8. Completely safe Liquid thermal controls and touch-safe technology maximize battery life and safety.


PRODUCT PARAMETER


Products type

MODEL : BSL-5

Battery pack Discharge Current (Max.) 100A
Cell Technology Lifepo4 Battery Efficiency 98%
Battery Pack Capacity (Wh) 5120 Depth of Discharge 100%
Battery pack Voltage (Vdc) 48-51.2 Dimension (L*W*H, mm)
(W399.5×L563×D185mm )±5mm
Battery pack Capacity (AH)

150

Communication Option of CANBUS OR RS485, SMbus
Battery pack Cell Quantity in Series (pcs) 15S/16S Protection Class IP54
Battery pack Charge Voltage (Vdc) 54-58.4 Weight 51KG/119Ibs
Battery System Charge Current (Standard) 10A Operation Life 10+ years
Battery pack Charge Current (Normal) 20A Operation Cycle Life Over 4000 cycles
Battery pack Charge Current (Max.) 50A Operation Temperature 0-50℃
Battery pack Discharge lower-Voltage (Vdc) 40-46V Storage Temperature minus 20 -- 60 ℃
Battery System Discharge Current (Standard) 20A Products certificates TÜV (IEC62619), CE,ISO9001
Battery pack Discharge Current (Normal) 50A Transfer Certificates UN38.3, MSDS, ROHS

Strong & Durable Structure

BSLBATT Wall-mounted home lithium battery adopts the patented rhombus 18650 LiFePO4 cells. The whole internal assembly from cells, modules, BMS to components are screw fastening that presenting utmost safety and reliability.


powerwall 2 battery powerwall inverter
battery powered homes power wall charger
buy powerwall solar battery pack for home
cost of powerwall 10 kwh battery price
house battery for solar

                                   Performance Characteristics

Powerwall Long Life
Powerwall Different current
Powerwall Charging
48V 100Ah battery

The BSLBATT storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn’t shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.

Testimonials

“BSLBATT batteries eliminated the most difficult challenges we face when building microgrids in remote tropical locations. The batteries are much easier to transport and they have a good chance of lasting the entire 20 years. This means BSLBATT batteries generally pay for themselves in under 4 years!”


Since 2003, BSLBATT provides electric energy more efficiently and reliably as best solution. Powerwall charges by day and powers at night for residential solar system with compact, affordable and easy installation features.
