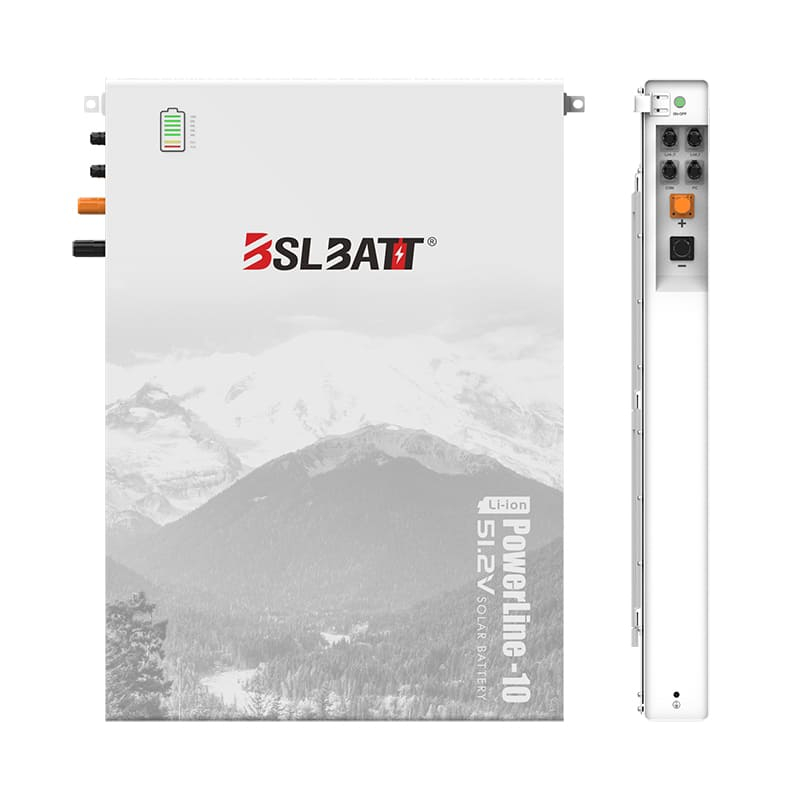

48V 200Ah LiFePO4 Battery 10kWh - PowerLine - 10
The introduction of the ultra-thin series 5kWh battery PowerLine -5 was liked by many homeowners, and the 9cm thick battery design allowed the battery to fit more closely to the wall, so soon after we went into the development of the 10kWh wall mounted solar battery PowerLine -10. This 48V 200Ah LiFePO4 battery not only inherits all the advantages of the PowerLine -5, but also has new and more outstanding ideas, such as the bold attempt to print a landscape on the front of the battery, thus making this product complete the transformation from industry to art. If you buy a PowerLine -10, what you get is not only a wall mounted solar battery but also an artful mural!
- 50% Installation Space
Want to save space and reduce clutter in your home? BSLBATT 10kWh wall mounted battery is the solution you've been looking for! Our wall-mounted home battery saves you 50% of installation space while still delivering top-notch performance.
5X Cycle Life
Tired of constantly replacing your home battery? BSLBATT 10kWh wall mounted battery has a 5X cycle life compared to traditional home batteries, meaning you'll have to replace it far less often.
3X Watt Density
Need a high-performance home battery that won't let you down? BSLBATT 48V 200Ah LiFePO4 Battery 10kWh battery has 3X the Watt Density of traditional home batteries, providing you with reliable and consistent power.
+10% Energy Density
Looking to get more energy out of your home battery? BSLBATT 48V 200Ah LiFePO4 Battery 10kWh battery has a +10% energy density, allowing you to get the most out of every charge.
- 20% Cost
Want to save money without sacrificing quality? BSLBATT 48V 200Ah LiFePO4 Battery 10kWh battery is 20% less expensive than traditional home batteries, without sacrificing any of the features or benefits you need.
Product Highlights
● Ultra-thin wall-mounted home battery design, beautiful atmosphere, perfectly integrated into the home environment
● Built-in stable BMS with overcharge, overdischarge, overcurrent, high and low temperature protection functions
● LED strip shows battery capacity and battery status in real time
● Adopt low resistance MOS tube for main negative circuit control
● Automatic dialing code assignment function, maximum 15 parallel connections
● According to different scenarios, matching different accessories for wall and floor mounting
PowerLine - 10 Specification
Specifification
| Model | BSLBATT PowerLine - 10 | |
Electrical Characteristics | Nominal Voltage | 51.2V(16series) |
| Nominal Capacity | 200Ah | |
| Energy | 10240kWh | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | ≥6000 cycles @ 90% DOD, 25℃, 0.5C ≥8000 cycles @ 80% DOD, 25℃, 0.5C | |
| Design Life | ≥20 years | |
| Months Self Discharge | ≤2%，@25℃ | |
| Effificiency of Charge | ≥98% | |
| Effificiency of Discharge | ≥100% @ 0.2C ≥96% @ 1C | |
Charge | Charge Cut-off Voltage | 58.4V±0.1V |
| Charge Current | 100A | |
| Max. Charge Current | 160A | |
| Charge Voltage | 56V | |
Discharge | Continuous Current | 200A |
| Max. Continuous Discharge Current | 130A | |
| Discharge Cut-off Voltage | 38V±0.2V | |
Environmental | Charge Temperature | 0～55℃ ≤90%ROH |
| Discharge Temperature | -20～60℃ ≤90%ROH | |
| Storage Temperature | -40℃~55℃ @ 60%±25% relative humidity | |
| Water Dust Resistance | IP65 | |
Mechanical | Method | 16S2P |
| Case | Iron (Insulation painting) | |
| Dimensions | （700*980*100）±2mm | |
| Weight | 95±2Kg | |
| Gravimetric Specifific energy | Approx:113Wh/kg | |
| Protocol (optional) | RS485/CANBUS-Inverter | |
Other | SOC Light | 6 * LED |
| Display Screen | LCD(Optional) | |
| Limit charge current | 20A | |
As one of the top lithium-ion solar battery manufacturers, we can custom different specification batteries. Voltage: 12 to 48V; capacity: 50Ah to 600ah.The BSLBATT storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn't shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.
