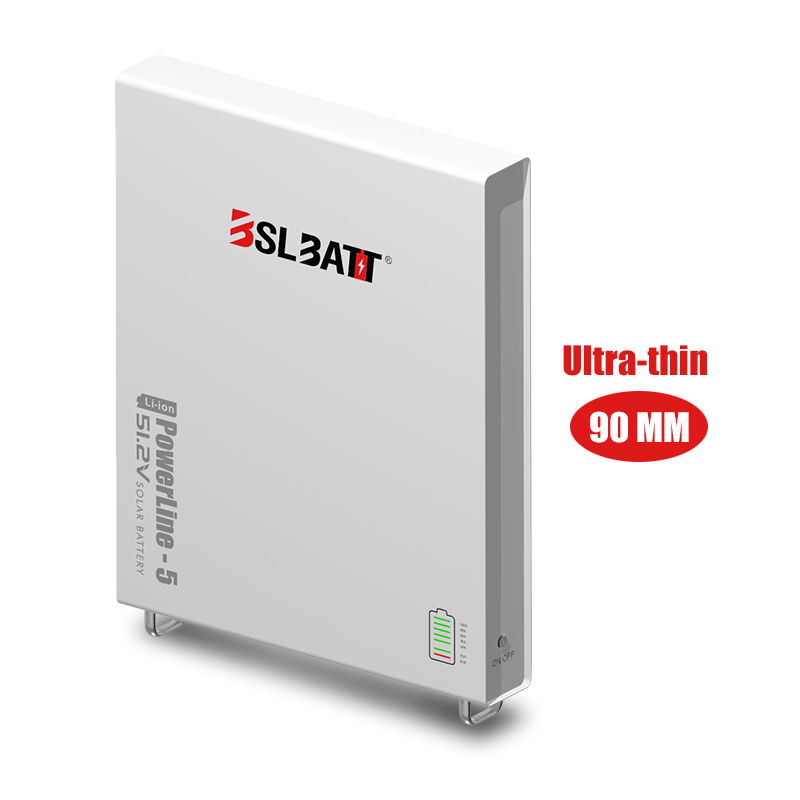

5.12kWh BSLBATT Lithium Battery LFP-48
WITH OR WITHOUT SOLAR, ALWAYS HAVE BACKUP POWER
The BSLBATT Home Battery Storage is a 48V Lithium Iron Phosphate (LFP) Battery with a built-in battery management system and 100A BMS supports the following communications Canbus/RS485ARS232/RS485B, of which canbus and RS485A are responsible for communication with the inverter, RS232 is responsible for communication with the BMS host computer above, and at the same time as a BMS software upgrade interface, RS485B is responsible for parallel communication between BMSs.The BSLBATT Lithium Battery is maintenance-free and easy to integrate with solar or for independent operation to deliver power to your home day or night. Designed for backup power, off-grid, time of use, and self-use applications, the BSLBATT is consistently reliable and will keep your solar system operating during a power outage, or will use the energy stored from the daytime to power your home at night.
THE WORLD’S SMARTEST BATTERY MANAGEMENT SYSTEM
The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection. This high-performance BSLBATT Lithium Battery has a large power capacity, with a fast charging and continuous discharge power, providing 98% efficiency. The advanced Lithium Ferro Phosphate (LFP) technology operates a wider temperature range to deliver the most dependable performance. LFP has been proven to be one of the safest Lithium technologies in the industry and is manufactured to the highest standards.
SAVE UP TO 25% ON YOUR UTILITY
When paired with solar, the BSLBATT Powerwall is the perfect way to automatically save money while paying the lowest possible cost for your energy.
TAKE COMPLETE CONTROL WITH THE BSLBATT POWER APP
Our intelligent software combines weather, utility rate, and historical solar production and energy consumption data to continually drive energy efficiency and improve system performance to meet your specifically tailored goals.
The BSLBATT LFP-10 is the ideal energy storage solution for grid-tied or off-grid solar installations. Lower your utility bill by avoiding the need to buy electricity at peak times with the BSLBATT Lithium Battery LFP-10. Order online or by PHONE +86 752 2819469
● Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
● No Thermal Runaway with Fire Propagation
● No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
● Extended Operating Temperature -4 to 140F
● 98% Efficiency Rate
● Fast Charge & Discharge Rates
● 10,000 Cycle Life with a 10 Year Warranty
● Cycle One to Several Times Per Day
● Seamless Integration with All Industry Standard Inverter/Charge Controllers
● Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation
● Modular, Scalable & Proven Performance
● Made in China.
|Model||BSLBATT LFP-48V Battery PACK|
|Cycle Life||≥6000 cycles @ 80% DOD, 25℃, 0.5C ≥5000 cycles @ 80% DOD, 40℃, 0.5C|
|Design Life||≥10.5 years|
|Months Self Discharge||≤2%，@25℃|
|Effificiency of Charge||≥98%|
|Effificiency of Discharge||≥100% @ 0.2C ≥96% @ 1C|
|Charge Cut-off Voltage||54.0V±0.1V|
|Charge Mode||1C to 54.0V, then 54.0V charge current to 0.02C (CC/CV)|
|Max. Charge Current||130A|
|Charge Cut-off Voltage||54V±0.2V(Floating charge voltage)|
|Max. Continuous Discharge Current||130A|
|Discharge Cut-off Voltage||38V±0.2V|
|Charge Temperature||0℃~60℃ (Under 0℃ extra heating mechanism)|
|Discharge Temperature||-20℃~60℃ (Under 0℃work with reduced capacity)|
|Storage Temperature||-40℃~55℃ @ 60%±25% relative humidity|
|Water Dust Resistance||Ip21 (The battery cabinet supports Ip55)|
|Case||Iron (Insulation painting)|
|Dimensions||780 x630 x160(220)mm|
|Gravimetric Specifific energy||Approx:92Wh/kg|
|Protocol (optional)||RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter|
|SOC Light||6 * LED|
|Limit charge current||20A|
Strong & Durable Structure
BSLBATT Wall-mounted home lithium battery adopts the patented rhombus 18650 LiFePO4 cells. The whole internal assembly from cells, modules, BMS to components are screw fastening that presenting utmost safety and reliability.
The BSLBATT storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn’t shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.
“BSLBATT batteries eliminated the most difficult challenges we face when building microgrids in remote tropical locations. The batteries are much easier to transport and they have a good chance of lasting the entire 20 years. This means BSLBATT batteries generally pay for themselves in under 4 years!”
