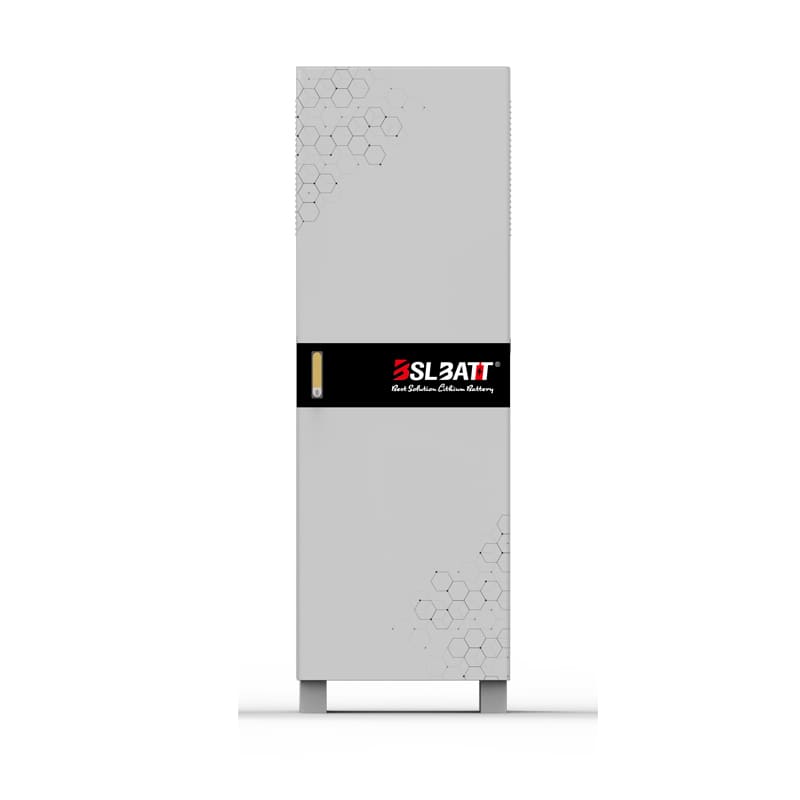

5-20 kWh BSLBATT Off Grid Lithium Battery Bank B-LFP48-LVC
B-LFP48-LVC - LOW VOLTAGE ALL IN ONE STORAGE SYSTEM The B-LFP48-LVC is a true all in one storage system that includes an 8kW inverter and our popular 5kWh or 10kWh battery, which can be expanded to a maximum of 20kWh per system. The B-LFP48-LVC is rack-mountable and designed with an IP65 waterproof enclosure, so you can place it anywhere indoors or outdoors. |
|
| THE WORLD’S SMARTEST BATTERY MANAGEMENT SYSTEM The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection. This high-performance BSLBATT Lithium Battery has a large power capacity, with a fast charging and continuous discharge power, providing 98% efficiency. The advanced Lithium Ferro Phosphate (LFP) technology operates a wider temperature range to deliver the most dependable performance. LFP has been proven to be one of the safest Lithium technologies in the industry and is manufactured to the highest standards. |
B-LFP48-LVC OFF GRID BATTERY BANK The B-LFP48-LVC Off Grid Battery Bank includes the latest LiFePo4 technology to ensure safer installation and wider temperature tolerances. With a 10-year warranty and 90% discharge depth, the 48V Off Grid Battery Bank is a flexible, practical, high-performance energy storage solution. |
|
| 8KW HYBRID INVERTER (LOW BATTERY VOLTAGE) Flexible: Wide input voltage range. Grace: IP65 , wall mounted design, Touch screen LCD. Reliable: Battery reverse connect protection. Advanced: Intelligent energy management system for home. Power dispatching and demand side response management. Distributed virtual power station management. |
The BSLBATT B-LFP48-LVC is the ideal energy storage solution for grid-tied or off-grid solar installations. Lower your utility bill by avoiding the need to buy electricity at peak times with the BSLBATT Lithium Battery B-LFP48-LVC. Order online or by PHONE +86 752 2819469
Product Highlights
● Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
● Cabinet type design, small footprint
● Up to 20kWh, designed for home energy storage
● IP65 waterproof housing, suitable for a variety of use scenarios
● Extended Operating Temperature -4 to 140F
● 98% Efficiency Rate
● Fast Charge & Discharge Rates
● >6,000 Cycle Life with a 10 Year Warranty
● Cycle One to Several Times Per Day
● Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation
● Pure sine wave output
● Self-consumption and Feed-in to the grid
● Programmable supply priority for PV, Battery or Grid
● Monitoring software for real-time status display and control
● Made in China.
Specification
| Model | BSLBATT LFP-48V Off Grid Lithium Battery Bank | |
Electrical Characteristics | Nominal Voltage | 51.2V(16S2P) |
| Nominal Capacity | 100Ah/200Ah | |
| Energy | 5.12kWh/10.240KWh | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | ≥6000 cycles @ 80% DOD, 25℃, 0.5C ≥5000 cycles @ 80% DOD, 40℃, 0.5C | |
| Design Life | 10-20 years | |
| Months Self Discharge | ≤2%，@25℃ | |
| Effificiency of Charge | ≥98% | |
| Effificiency of Discharge | ≥100% @ 0.2C ≥96% @ 1C | |
Charge | Charge Cut-off Voltage | 54.0V±0.1V |
| Charge Mode | 1C to 54.0V, then 54.0V charge current to 0.02C (CC/CV) | |
| Charge Current | 100A | |
| Max. Charge Current | 130A | |
| Charge Cut-off Voltage | 54V±0.2V(Floating charge voltage) | |
Discharge | Continuous Current | 100A |
| Max. Continuous Discharge Current | 200A | |
| Discharge Cut-off Voltage | 43.2V | |
Environmental | Charge Temperature | 0℃~60℃ (Under 0℃ extra heating mechanism) |
| Discharge Temperature | -20℃~60℃ (Under 0℃work with reduced capacity) | |
| Storage Temperature | -40℃~55℃ @ 60%±25% relative humidity | |
| Water Dust Resistance | IP65 | |
Mechanical | Method | 16S2P/15S4P |
| Case | Iron (Insulation painting) | |
| Single module Size/weight | 680*442*177mm /55Kg | |
| Main box size/weight | 2000*800*600mm/100Kg | |
| Combination method | 100Ah PACK*4/200Ah PACK*2 | |
| Protocol (optional) | RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter | |
Other | SOC Light | 6 * LED |
| Display Screen | LCD(Optional) | |
| Limit charge current | 20A | |
Strong & Durable Structure
BSLBATT Wall-mounted home lithium battery adopts the patented rhombus 18650 LiFePO4 cells. The whole internal assembly from cells, modules, BMS to components are screw fastening that presenting utmost safety and reliability.
 |  |
 |  |
 |  |
 |  |
 | |
Performance Characteristics
 |
 |
 |
More Home Battery Solutions >>> |
The BSLBATT storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn’t shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.
As one of the top lithium ion solar battery manufacturers, we can custom different specification batteries. Voltage: 12 to 48V; capacity: 50Ah to 600ah.
