BSLBATT Energy Storage Solutions for Businesses
The BSLBATT commercial solar battery storage system offers outstanding flexibility and can be flexibly expanded in increments of 10.24 kWh batteries, with a modular design for greater integration, space saving installation and optimal adaptation to any application!
The BSLBATT batteries for solar panel storage are grounded on a lithium-ion battery system and serve as a complete result for stationary energy storehouses. In addition to the numerous possible operations in the areas of self-demand optimization, peak shaving, support for e-charging stations, and an additive emergency power solution results in the off-grid sector, the commercial battery storage system also offers other highlights.
Integrating Your Solar Panel System With A Battery Storage Solution
Product Highlights ● Module level auto-balancing ● 30 - 100 kWh available capacity ● Tier One, A+ Cell Composition ● Extended capacity in increments of 10.24 kWh ● AC Coupled for both new and retrofitted installations ● Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry ● No Thermal Runaway with Fire Propagation ● No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling ● Extended Operating Temperature -4 to 140F ● 98% Efficiency Rate ● Fast Charge & Discharge Rates ● ≥ 6000 Cycle Life with a 10 Year Warranty ● Cycle One to Several Times Per Day ● Seamless Integration with All Industry Standard Inverter/Charge Controllers ● Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation ● Modular, Scalable & Proven Performance ● UL rated battery pack. | |
Smart Micro Grid Solution Avoiding peak loads Electrification of off-grid areas Maximum Energy Self-consumption | |

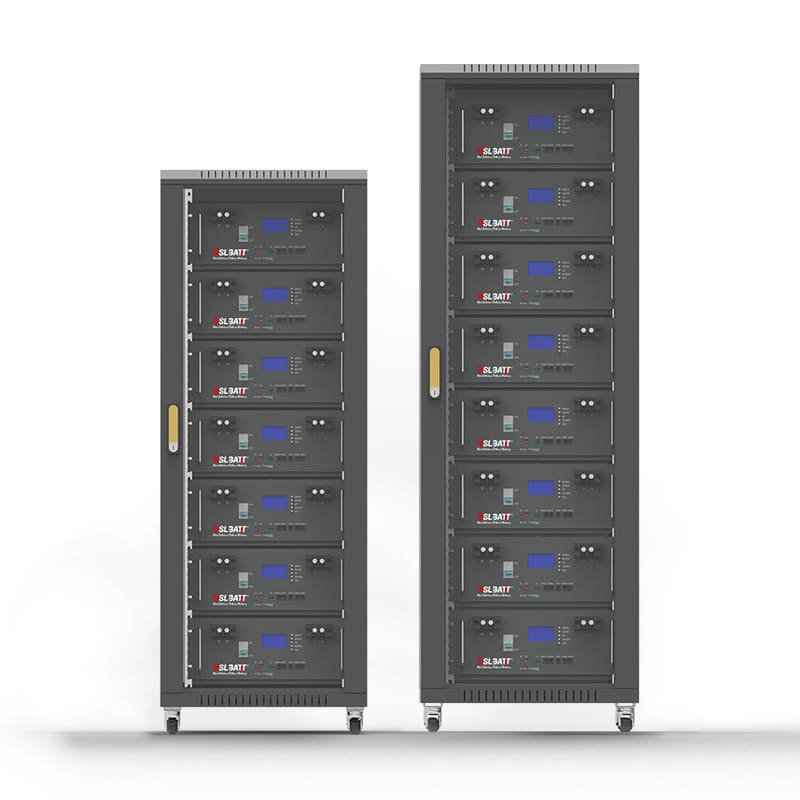

48V LiFePo4 Battery Module51.2V/10.24KWH battery modules, paralleled in each single cabinet rack for greater capacity. |
Specification
Model | B-LFP48-600C | B-LFP48-800C | B-LFP48-1000C | B-LFP48-1200C | B-LFP48-1400C | B-LFP48-1600C |
Battery module | 200Ah lithium ion battery, 10.24kWh | |||||
Nominal voltage | 48V/51.2V(optional) | |||||
Storage capacity | 600Ah | 800Ah | 1000Ah | 1200Ah | 1400Ah | 1600Ah |
Internal resistance (AC) | 30KWH | 40KWH | 50KWH | 60KWH | 70KWH | 80KWH |
Cycle life | ≤60mΩ | |||||
Design Life | ≥6000 cycles @80% DOD,25℃,0.5C ≥ 4000 cycles @80% DOD,40℃,0.5C | |||||
Capacity | 10 - 20 Years | |||||
Maximum Operating Current | 53V ± 0.5V(15S);56.0V ± 0.5V(16S) | |||||
Recommended charging voltage | 200A | 300A | 400A | 400A | 400A | 400A |
Discharge cut-off voltage | 45V ± 1.0V(15S);48V ± 1.0V(16S); | |||||
Charging temperature range | 0℃ ~ 60℃ | |||||
Discharge temperature range | -20℃ ~ 60℃ | |||||
Storage temperature range | -40℃~55℃ @ 60% ± 25% relative humidity | |||||
Dimensions in mm | 600*800*988 | 600*800*1166 | 600*800*1388 | 600*800*1610 | 600*800*1833 | 600*800*2055 |
Weight | 350kg | 460kg | 570kg | 680kg | 780kg | 900kg |
Communication method | RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter | |||||
Number of parallel connections | Supports up to 10 batteries in parallel | |||||
Certification | UN38.3,MSDS,UL1973(Cell),IEC62619(Cell) |
Strong & Durable Structure
BSLBATT 48 volt home lithium battery adopts the patented rhombus Tier One, A+ LiFePO4 Cell Composition LiFePO4. The whole internal assembly from cells, modules, BMS to components are screw fastening that presenting utmost safety and reliability.
Performance Characteristics
The BSLBATT storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn’t shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.
As one of the top lithium ion solar battery manufacturers, we can custom different specification batteries. Voltage: 12 to 48V; capacity: 50Ah to 600ah.
Testimonials
“BSLBATT batteries eliminated the most difficult challenges we face when building microgrids in remote tropical locations. The batteries are much easier to transport and they have a good chance of lasting the entire 20 years. This means BSLBATT batteries generally pay for themselves in under 4 years!”
