DC to AC Power Conversion Explained: Your Guide to Inverters

DC to AC power conversion plays a critical role in modern energy systems. It bridges the gap between direct current (DC) sources, like solar panels and batteries, and alternating current (AC) devices, which dominate household and industrial applications. This conversion ensures compatibility with electrical grids, enabling efficient energy distribution and utilization.

Inverters act as the backbone of this process. By transforming DC into AC, they unlock the potential of renewable energy systems and battery storage solutions. Industry research highlights that DC hubs can reduce conversion losses to as low as 2%, compared to the 5–10% losses seen in device-level converters. This efficiency improvement underscores the importance of reliable inverter technology in achieving sustainable energy goals.

Key Takeaways

• Inverters change DC power from solar panels into AC power. This makes it usable for home appliances like TVs and fridges.
• Picking an inverter with over 95% efficiency saves energy. It lowers electricity costs and works better.
• Know how much power you need. Add up the wattage of your devices. Choose an inverter with enough power to prevent overload.
• Think about the output type. Pure sine wave inverters are best for delicate electronics. Modified sine wave inverters cost less but work with fewer devices.
• Install and maintain inverters properly. This helps them last longer and work well for different uses.

DC vs AC Power

Defining Direct Current (DC)

Characteristics of Direct Current

Direct current (DC) flows in a single, unidirectional path. This steady flow of electricity makes it ideal for applications requiring consistent voltage levels. Unlike alternating current (AC), DC does not oscillate between positive and negative values. Instead, it maintains a constant polarity, which simplifies its use in many electronic devices.

DC power is often generated by sources like batteries, solar panels, and fuel cells. These sources produce electricity that flows directly to power devices or charge storage systems. The simplicity of DC circuits reduces energy losses during transmission over short distances.

Applications of Direct Current

DC power plays a crucial role in modern technology. It powers devices such as smartphones, laptops, and LED lighting systems. Electric vehicles (EVs) also rely on DC for their battery systems. Additionally, DC is essential in renewable energy systems, where solar panels generate direct current before converting it to AC for grid compatibility.

In data centers, DC power distribution is gaining traction. Studies show that 380-V DC systems outperform traditional AC setups in efficiency, especially when integrated with photovoltaic (PV) systems. This efficiency reduces operational costs and enhances reliability.

Defining Alternating Current (AC)

Characteristics of Alternating Current

Alternating current (AC) reverses its direction periodically. This oscillation occurs at a specific frequency, typically 50 or 60 Hz, depending on the region. The voltage in AC systems alternates between positive and negative values, creating a sinusoidal waveform.

AC’s ability to change voltage levels using transformers makes it ideal for long-distance transmission. High-voltage AC minimizes energy losses during transmission, ensuring efficient delivery to homes and businesses.

Applications of Alternating Current

AC powers most household appliances, including refrigerators, air conditioners, and televisions. It is the standard for electrical grids worldwide due to its efficiency in transmission and distribution.

Industrial machinery and large-scale systems also depend on AC. Its compatibility with transformers allows industries to operate equipment at varying voltage levels. This versatility makes AC indispensable in both residential and commercial settings.

Key Differences Between DC and AC

Flow of Voltage and Current

The primary difference lies in how electricity flows. DC maintains a steady flow in one direction, while AC alternates its direction periodically. This distinction affects their applications and efficiency.

For instance, DC is more efficient for powering modern devices like smartphones and laptops. These devices often require DC internally, even if they receive AC from the grid. On the other hand, AC’s oscillating nature makes it suitable for transmitting electricity over long distances.

Technological Applications

DC and AC serve different technological needs. DC is ideal for renewable energy systems, electric vehicles, and data centers. Approximately 74% of electrical loads in homes require DC power, including HVAC systems and EV chargers. Its compatibility with digital devices and safety advantages make it a preferred choice for modern applications.

AC, however, dominates traditional power systems. It powers household appliances, industrial equipment, and electrical grids. The ability to step up or down voltage levels using transformers ensures its continued relevance in energy distribution.

Note: While both AC and DC have similar efficiency levels in some scenarios, minimizing power conversion stages can enhance DC efficiency. For example, DC distribution in data centers reduces energy losses and operational costs compared to AC systems.

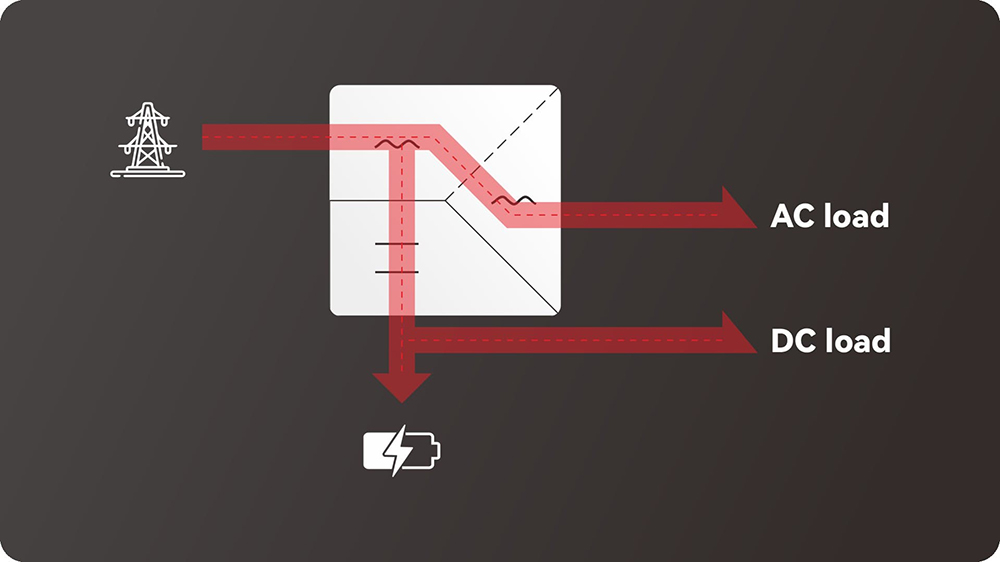

Significance of DC to AC Power

Impact on Daily Life

DC to AC power conversion has transformed how we interact with energy in our everyday lives. Most household appliances, from refrigerators to televisions, rely on alternating current (AC) to function. However, many energy sources, such as solar panels and batteries, produce direct current (DC). Inverters bridge this gap, ensuring that DC energy can power AC devices seamlessly.

Take renewable energy systems as an example. Solar panels generate DC electricity, but homes and businesses require AC for their lighting, heating, and cooling systems. Inverters convert this DC into usable AC, enabling homeowners to harness clean energy without compromising convenience.

Backup power systems also highlight the importance of DC to AC conversion. During outages, batteries store DC electricity, which inverters transform into AC to keep essential devices running. This capability ensures uninterrupted access to critical appliances, such as medical equipment and communication devices.

Tip: When choosing an inverter for household use, consider the power requirements of your appliances. Overloading an inverter can lead to inefficiency or damage.

Influence on Modern Electronics

Modern electronics depend heavily on DC to AC power conversion. Devices like laptops, smartphones, and gaming consoles often require DC internally, even though they receive AC from wall outlets. Inverters play a crucial role in adapting energy sources to meet these devices’ needs.

Electric vehicles (EVs) offer another compelling example. EVs store energy in DC batteries, but charging stations and onboard systems often require AC. Inverters ensure compatibility between these components, enabling efficient energy transfer and vehicle operation.

Data centers also benefit from DC to AC power conversion. These facilities house servers and equipment that rely on DC power for efficiency. However, integrating with the grid requires AC compatibility. Advanced inverter systems manage this transition, optimizing energy use while maintaining reliability.

Note: Innovations in inverter technology, such as pure sine wave output, have improved compatibility with sensitive electronics. This advancement reduces the risk of damage and enhances performance.

Why DC to AC Power Conversion is Important

Powering Household Appliances

Household appliances rely on alternating current (AC) for operation, but many energy sources, such as batteries and solar panels, produce direct current (DC). Inverters play a vital role in converting DC to AC, ensuring compatibility with these appliances. Without this conversion, devices like refrigerators, washing machines, and televisions would remain unusable with renewable energy systems or backup power solutions.

Energy efficiency is another critical factor. The process of converting DC to AC can result in energy waste, typically ranging from 5% to 20%. This loss underscores the importance of selecting high-quality inverters to minimize inefficiency. By optimizing conversion systems, households can reduce energy waste and lower electricity bills.

Tip: When choosing an inverter for home use, prioritize models with higher efficiency ratings to maximize energy savings.

Compatibility with Electrical Grids

Electrical grids operate exclusively on AC power, making DC to AC conversion essential for integrating distributed energy resources. Inverters act as the interface between DC sources, such as solar panels or battery storage systems, and the AC grid. This compatibility ensures smooth energy transfer and supports grid stability.

Advanced inverter technologies enhance grid performance. Bidirectional AC/DC converters regulate voltage levels and improve power delivery. These systems also enable energy storage during off-peak hours and discharge during peak demand, balancing supply and demand effectively.

Grid compatibility is particularly important for homeowners who use solar energy. By converting DC from photovoltaic panels into AC, inverters allow surplus energy to be fed back into the grid, earning credits through net metering programs.

Role in Renewable Energy Systems

Renewable energy systems depend heavily on DC to AC power conversion. Solar panels generate DC electricity, which must be converted to AC for use in homes, businesses, and the grid. Inverters equipped with maximum power point tracking (MPPT) technology optimize this conversion, ensuring efficient energy utilization.

Innovative designs, such as Global Maximum Power Point Tracking (GMPPT), further enhance energy extraction from photovoltaic systems. These advancements improve the efficiency of renewable energy integration, making clean energy more accessible and reliable.

Bidirectional converters also play a crucial role in renewable systems. They manage energy flow during charging and discharging cycles, enabling seamless operation of battery storage systems. This capability supports the transition to sustainable energy by maximizing the utility of solar and wind power.

Note: High-quality inverters with MPPT technology can significantly improve the performance of renewable energy systems, reducing energy losses and increasing overall efficiency.

The Role of the Inverter: How DC to AC Conversion Works

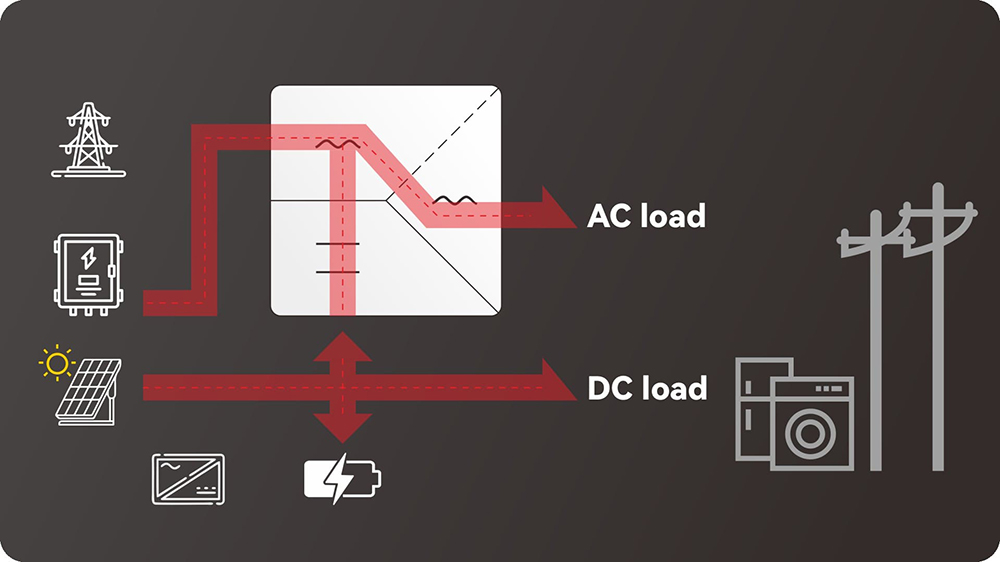

How Inverters Work

Inverters are the heart of DC to AC power conversion. They take direct current (DC) from sources like solar panels or batteries and transform it into alternating current (AC) suitable for powering household appliances or feeding into the electrical grid. This transformation involves advanced electronic circuitry and control mechanisms to ensure efficiency and reliability.

Modern inverters rely on semiconductor switches, such as insulated-gate bipolar transistors (IGBTs) or metal-oxide-semiconductor field-effect transistors (MOSFETs), to regulate the flow of electricity. These switches operate at high frequencies, enabling precise control over the output waveform. The inverter’s control system uses algorithms to generate switching signals, ensuring the output matches the desired AC voltage and frequency.

Key performance metrics highlight the reliability of inverters in converting DC to AC power:

• The relationship between AC and DC power remains nearly linear under varying conditions, though minor non-linearities arise due to self-consumption and circuit characteristics.
• Efficiency, calculated as the ratio of AC power to DC power, depends on input voltage and environmental factors like solar irradiance.
• Maximum-power-point-tracking (MPPT) technology in modern inverters achieves effectiveness rates of 98% to nearly 100%, ensuring optimal energy utilization.

Note: When selecting an inverter, always review manufacturer specifications, including efficiency, AC voltage, frequency, and maximum power ratings. These details ensure compatibility with your energy system.

Output Waveforms: Pure Sine Wave vs Modified Sine Wave

The quality of an inverter’s output waveform significantly impacts its performance and compatibility with connected devices. Inverters typically produce one of two types of waveforms: pure sine wave or modified sine wave.

Pure sine wave inverters produce a smooth, continuous waveform that closely mimics the AC power supplied by the grid. This makes them ideal for sensitive electronics, such as medical equipment, computers, and audio systems, which require stable and clean power.

Modified sine wave inverters, on the other hand, generate a stepped waveform. While they are more affordable, their output may cause issues with devices that rely on precise voltage regulation, such as microwaves or laser printers. The higher harmonic distortion in modified sine wave output can also lead to increased heat generation and reduced efficiency in connected devices.

Tip: For critical applications or sensitive electronics, always opt for a pure sine wave inverter to ensure optimal performance and longevity of your devices.

Step-by-Step Conversion Process

The process of converting DC to AC involves several well-defined steps, each contributing to the inverter’s overall functionality and efficiency:

1. System Design and Specification: Define the desired output voltage, frequency, and waveform characteristics. This step ensures the inverter meets the specific requirements of the application.
2. Modulation Method Selection: Choose a modulation technique, such as pulse-width modulation (PWM), to control the inverter’s switching signals.
3. Control Logic Development: Develop algorithms to translate the desired AC waveform into precise switching states for the inverter’s semiconductor components.
4. PWM Signal Generation: Use digital signal processors (DSPs) or field-programmable gate arrays (FPGAs) to generate high-frequency PWM signals based on the selected modulation strategy.
5. Switching Operation: Activate the inverter’s semiconductor switches in a sequence that converts the DC input into an AC waveform.
6. Filtering: Pass the output through filters to smooth the waveform and reduce harmonic distortion, ensuring it meets grid or device standards.
7. Output Regulation: Continuously monitor and adjust the output to maintain stable voltage and frequency, even under varying load conditions.

This process ensures that the inverter delivers reliable and efficient AC power, whether for household appliances, industrial equipment, or grid integration. Advanced testing protocols verify the accuracy and stability of each step, ensuring the inverter performs as expected in real-world conditions.

Callout: Innovations in inverter design, such as the use of MPPT and advanced modulation techniques, have significantly improved the efficiency and reliability of DC to AC power conversion. These advancements make inverters indispensable in modern energy systems.

Types of DC to AC Inverters

Grid-Tied Inverters

Grid-tied inverters are designed to synchronize with the electrical grid. They convert DC power from sources like solar panels into AC power that matches the grid’s voltage and frequency. These inverters are ideal for systems where users want to sell excess electricity back to the grid through net metering programs.

I’ve noticed that grid-tied inverters dominate the market due to their efficiency and widespread adoption in residential and commercial solar PV systems. Their ability to feed surplus energy into the grid makes them a cost-effective choice for homeowners and businesses. For example, a suburban home with partial shading can benefit from microinverters, which increase energy production by up to 15%.

Tip: When selecting a grid-tied inverter, ensure it supports your region’s grid frequency (50Hz or 60Hz) and complies with local regulations like UL 1741 standards.

Off-Grid Inverters

Off-grid inverters operate independently of the electrical grid. They are essential for remote areas where grid access is unavailable or unreliable. These inverters convert DC power from batteries or renewable sources into AC power for standalone systems.

I’ve observed that off-grid systems are gaining popularity due to their ability to provide energy independence. They are particularly useful for cabins, rural homes, and disaster recovery setups. However, off-grid inverters require careful sizing to match power requirements. For instance, the maximum continuous power rating must be conservatively estimated to ensure efficient operation.

Note: Off-grid systems often include battery storage, so choose an inverter compatible with your battery’s voltage and capacity.

Hybrid Inverters

Hybrid inverters combine the features of grid-tied and off-grid systems, offering flexibility in energy sourcing. These inverters can switch seamlessly between grid power, battery storage, and renewable energy sources.

I’ve seen hybrid inverters excel in residential solar-plus-storage systems. For instance, one system reduced grid electricity consumption by 80%, thanks to its ability to store excess solar energy for later use. Hybrid inverters also support bidirectional energy flow, enabling users to charge batteries during off-peak hours and discharge them during peak demand.

Key Features of Hybrid Inverters:

• Waveform: Pure sine wave output ensures compatibility with sensitive electronics.
• Battery Integration: Operates with or without batteries, depending on system design.
• Parallel Capability: Supports multiple inverters for higher power output.

Callout: Hybrid inverters are ideal for users seeking energy flexibility and resilience, especially in areas with frequent power outages.

Microinverters

Microinverters represent a significant advancement in inverter technology. Unlike traditional string inverters, which connect multiple solar panels to a single inverter, microinverters operate at the panel level. Each solar panel gets its own dedicated microinverter, allowing it to function independently. This design improves energy efficiency and system reliability.

One of the key benefits of microinverters is their ability to optimize energy production. I’ve noticed that in systems with partial shading or varying panel orientations, microinverters outperform string inverters. For example, if one panel in a string inverter system experiences shading, the entire string’s output drops. With microinverters, only the shaded panel’s output decreases, while the others continue operating at full capacity.

Microinverters also simplify system monitoring. Many models include built-in communication modules that provide real-time performance data for each panel. This feature makes it easier to identify and address issues, such as a malfunctioning panel, without affecting the entire system.

Tip: If you’re installing a solar system in an area with frequent shading or complex roof designs, microinverters are an excellent choice. They maximize energy output and reduce the impact of environmental factors.

Despite their advantages, microinverters come with higher upfront costs compared to string inverters. However, I’ve found that their long-term benefits, such as improved energy yield and reduced maintenance, often outweigh the initial investment. They are particularly well-suited for residential solar installations and small commercial projects where maximizing energy production is a priority.

Callout: Microinverters are compatible with most solar panels and are ideal for systems requiring high flexibility and efficiency. Their modular design also makes them easier to expand in the future.

Key Applications of DC to AC Inverters

Solar Energy Systems

Solar energy systems rely heavily on DC to AC inverters to convert the direct current generated by photovoltaic (PV) panels into alternating current suitable for household or grid use. I’ve observed that the efficiency of this conversion directly impacts the overall performance of solar installations. Advanced inverters equipped with Maximum Power Point Tracking (MPPT) technology ensure optimal energy extraction from solar panels, even under varying sunlight conditions.

A recent study highlights the importance of designing efficient solar inverters. It emphasizes tasks like current sensing, voltage management, and power-point tracking. Using advanced architectures, such as field-programmable gate arrays (FPGAs), significantly enhances inverter performance. The study also compares traditional and modern inverter methods under different load conditions, as shown below:

These findings demonstrate how modern inverter designs reduce harmonic distortion, improving energy quality and system reliability. For residential solar systems, this means fewer energy losses and better compatibility with household appliances.

Tip: When selecting an inverter for a solar system, prioritize models with MPPT technology and low total harmonic distortion (THD) for maximum efficiency.

Battery Energy Storage Systems (BESS)

Battery Energy Storage Systems (BESS) depend on inverters to manage energy flow between batteries and connected loads. I’ve noticed that inverters in BESS not only convert DC to AC but also regulate charging and discharging cycles. This ensures batteries operate efficiently and last longer.

Statistical evidence shows that microinverters provide a 5-10% efficiency gain compared to traditional inverters in BESS applications. This improvement stems from their ability to optimize energy conversion at the module level. For example:

These efficiency gains translate into lower energy costs and better system performance. In residential setups, this means homeowners can store excess solar energy during the day and use it at night, reducing reliance on the grid. For commercial applications, BESS with efficient inverters ensures uninterrupted power supply during peak demand or outages.

Callout: Choose inverters compatible with your battery type and capacity to maximize the benefits of your BESS.

Electric Vehicles (EVs)

Electric vehicles (EVs) rely on inverters to convert DC power from their batteries into AC power for their motors. I’ve seen how the power rating of an inverter determines its suitability for different types of EVs. Smaller passenger cars typically use inverters with ratings up to 130 kW, while high-performance EVs and heavy-duty trucks require ratings above 250 kW.

Inverters also play a critical role in EV charging stations. They ensure compatibility between the grid’s AC power and the vehicle’s DC battery system. Advanced inverters with bidirectional capabilities allow EVs to act as energy storage units, feeding power back to the grid during peak demand.

Note: When evaluating EV inverters, consider power rating, efficiency, and compatibility with the vehicle’s motor and battery system.

RV, Marine, and Portable Power

Inverters play a critical role in powering recreational vehicles (RVs), marine vessels, and portable energy systems. These applications demand reliable DC to AC conversion to ensure uninterrupted power for essential devices and appliances. I’ve seen how the right inverter can transform an RV or boat into a fully functional mobile home or workspace.

For RVs, inverters convert DC power from onboard batteries into AC power for appliances like microwaves, air conditioners, and televisions. Pure sine wave inverters are ideal for these setups because they provide clean power, ensuring compatibility with sensitive electronics. For example, a 2000-watt inverter can handle most RV appliances, while larger systems may require higher capacities.

Marine applications often face unique challenges, such as saltwater corrosion and limited space. Marine-grade inverters address these issues with robust enclosures and compact designs. I recommend choosing an inverter with a high ingress protection (IP) rating to withstand harsh environments. Additionally, hybrid inverters with solar charging capabilities can enhance energy independence for long voyages.

Portable power systems, such as those used for camping or outdoor events, benefit from lightweight and compact inverters. These systems often pair with portable solar panels or battery packs to provide AC power for small devices like laptops, lights, and fans. Modified sine wave inverters are a cost-effective choice for basic needs, but pure sine wave models offer better performance for sensitive equipment.

Tip: When selecting an inverter for RV, marine, or portable use, consider factors like power capacity, waveform type, and environmental durability. Always match the inverter’s specifications to your energy demands for optimal performance.

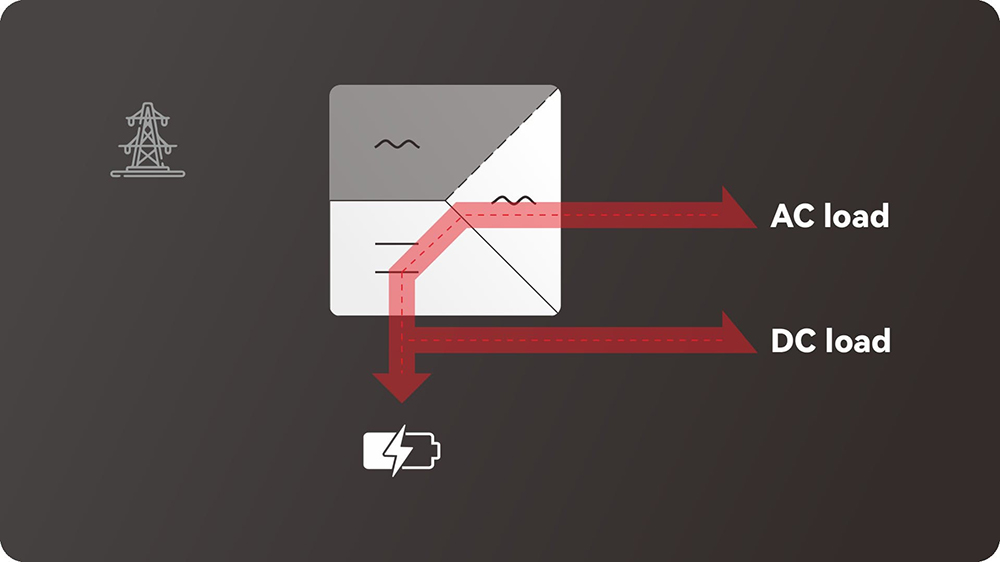

How to Choose the Right DC to AC Inverter

Determine Power Requirements

Choosing the right inverter starts with understanding your power needs. I always recommend calculating the total wattage of all devices you plan to connect. Add up the wattage of each appliance, then include a 20–30% buffer to account for startup surges or unexpected loads. For example, if your appliances require 1,500 watts, select an inverter rated for at least 2,000 watts. This ensures reliable performance without overloading the system.

For larger setups, such as solar energy systems or RVs, consider the inverter’s continuous and peak power ratings. Continuous power refers to the maximum load the inverter can handle over time, while peak power accounts for short bursts of higher demand. Matching these ratings to your energy needs prevents inefficiency and potential damage to your devices.

Select Output Waveform

The type of output waveform plays a critical role in inverter selection. I often emphasize the importance of choosing between pure sine wave and modified sine wave inverters based on your application. Pure sine wave inverters produce a smooth, grid-like AC waveform, making them ideal for sensitive electronics like medical equipment, laptops, and audio systems. Modified sine wave inverters, while more affordable, generate a stepped waveform that may cause issues with certain devices, such as microwaves or laser printers.

To illustrate the efficiency of different inverter types, consider the following comparison:

For critical applications, I always recommend pure sine wave inverters. They ensure compatibility and protect your devices from potential harm caused by waveform irregularities.

Match DC Input Voltage

Matching the inverter’s DC input voltage to your power source is essential for optimal performance. Most inverters are designed to work with specific input voltages, such as 12V, 24V, or 48V. I advise checking the voltage of your battery or solar panel system before purchasing an inverter. For instance, a 12V battery system requires a 12V input inverter. Using an incompatible voltage can lead to inefficiency or even damage to the inverter.

Higher voltage systems, like 48V, are more efficient for larger setups because they reduce current flow and minimize energy loss. This makes them a better choice for solar installations or off-grid systems with significant power demands. Always verify the inverter’s input voltage range in the manufacturer’s specifications to ensure compatibility with your energy source.

Consider Efficiency

Efficiency plays a critical role when selecting a DC to AC inverter. I always emphasize the importance of choosing an inverter with a high efficiency rating, as this directly impacts energy savings and system performance. Most modern inverters achieve efficiency levels between 90% and 98%. However, even a small difference can significantly affect long-term energy costs.

For example, a 95% efficient inverter converts 95% of the input DC power into usable AC power, with only 5% lost as heat. In contrast, a 90% efficient inverter wastes twice as much energy. This difference becomes more pronounced in large systems, such as solar installations, where energy losses can add up over time.

Tip: Look for inverters with certifications like Energy Star or compliance with standards such as UL 1741. These certifications ensure the inverter meets industry benchmarks for efficiency and safety.

Additionally, consider the inverter’s efficiency under partial load conditions. Many systems operate below their maximum capacity for most of the day. Inverters with high partial-load efficiency perform better in these scenarios, maximizing energy utilization.

Application-Specific Features

Different applications require specific inverter features. I always recommend evaluating your use case to identify the features that matter most. For instance, if you’re integrating an inverter into a solar energy system, prioritize models with Maximum Power Point Tracking (MPPT). This feature optimizes energy extraction from solar panels, even under varying sunlight conditions.

For off-grid setups, features like battery compatibility and low idle power consumption become crucial. Inverters designed for off-grid use often include advanced battery management systems to extend battery life and improve reliability.

In marine or RV applications, durability and compact design take precedence. I’ve seen how inverters with high ingress protection (IP) ratings perform well in harsh environments. Some models also include built-in surge protection, which safeguards sensitive electronics from voltage spikes.

Callout: Always match the inverter’s features to your specific needs. Overlooking key functionalities can lead to inefficiencies or compatibility issues.

Budget and Brand Reputation

Balancing cost and quality is essential when choosing an inverter. I advise against selecting the cheapest option without considering long-term performance and reliability. While budget-friendly inverters may save money upfront, they often lack advanced features and durability.

Reputable brands, such as SMA, SolarEdge, and Victron Energy, consistently deliver high-quality products. These manufacturers invest in research and development, ensuring their inverters meet industry standards and perform reliably over time.

Note: A higher initial investment in a well-known brand often pays off through better efficiency, longer lifespan, and lower maintenance costs.

When evaluating your budget, consider the total cost of ownership. This includes not only the purchase price but also installation, maintenance, and potential energy losses. I’ve found that mid-range inverters often strike the best balance between affordability and performance.

Tip: Research customer reviews and seek recommendations from industry professionals to identify brands with a strong reputation for quality and support.

Important Considerations for DC to AC Conversion

Efficiency Losses

Efficiency losses occur during DC to AC power conversion, primarily due to heat generation and internal resistance within the inverter. I’ve observed that these losses vary depending on the inverter type and power range. For instance, AC/DC boost converters can experience up to 2.5 times more loss than DC/DC converters. The table below highlights this difference:

To minimize these losses, I recommend selecting inverters with high efficiency ratings, typically above 95%. Advanced technologies like Maximum Power Point Tracking (MPPT) also help optimize energy conversion, especially in solar systems. Regular maintenance, such as cleaning cooling fans and ensuring proper ventilation, further reduces energy waste.

Tip: Always check the inverter’s efficiency curve. High-quality models maintain consistent performance across a wide range of loads.

Proper Sizing

Proper sizing ensures the inverter can handle the total power demand without overloading. I always advise calculating the combined wattage of all connected devices and adding a 20–30% buffer for startup surges. For example, if your appliances require 1,800 watts, choose an inverter rated for at least 2,400 watts.

Undersized inverters struggle to meet demand, leading to inefficiency and potential damage. Oversized inverters, while safer, may result in unnecessary energy losses and higher costs. Matching the inverter’s continuous and peak power ratings to your needs ensures optimal performance.

Callout: For solar systems, consider the inverter’s input voltage range. A mismatch with your solar panels or battery bank can reduce efficiency and reliability.

Installation and Safety

Proper installation is critical for both performance and safety. I’ve seen poorly installed inverters cause overheating, electrical faults, and even fires. Always follow the manufacturer’s guidelines and hire a certified electrician for complex setups.

Ensure the inverter is mounted in a well-ventilated area, away from direct sunlight and moisture. Use appropriately sized cables to prevent voltage drops and overheating. Grounding the system correctly also protects against electrical shocks and surges.

Note: Many regions require compliance with safety standards like UL 1741 for grid-tied inverters. Verify that your inverter meets these certifications to ensure safe operation.

Environmental Factors

Environmental conditions significantly impact the performance and longevity of DC to AC inverters. I’ve observed that factors like temperature, humidity, and dust accumulation can influence efficiency and reliability. Understanding these variables helps ensure optimal operation and extends the lifespan of your inverter.

Temperature

Temperature plays a critical role in inverter performance. High temperatures can cause overheating, reducing efficiency and potentially damaging internal components. Most inverters operate within a specific temperature range, typically -10°C to 50°C (14°F to 122°F). Operating outside this range can trigger thermal shutdowns or degrade performance.

To mitigate this, I recommend installing inverters in shaded, well-ventilated areas. For example, placing an inverter in a garage with proper airflow can prevent overheating. Some advanced models include built-in cooling systems, such as fans or heat sinks, to maintain optimal temperatures.

Tip: Check the inverter’s datasheet for its operating temperature range and ensure the installation site meets these requirements.

Humidity and Moisture

Excessive humidity or exposure to water can corrode internal components and lead to electrical faults. Marine environments, in particular, pose challenges due to saltwater exposure. I always advise using inverters with high ingress protection (IP) ratings, such as IP65, for outdoor or humid conditions. These models are sealed to prevent moisture ingress.

Dust and Debris

Dust accumulation can block ventilation and cause overheating. In dusty environments, I recommend using inverters with dustproof enclosures. Regular maintenance, like cleaning vents and filters, also helps maintain efficiency.

Callout: Environmental factors can significantly affect inverter performance. Always consider these conditions during installation to maximize efficiency and durability.

BSLBATT’s Expertise in DC-AC Conversion Solutions

At BSLBATT, we specialize in delivering cutting-edge DC to AC conversion solutions tailored to modern energy needs. Our battery energy storage systems (BESS) integrate seamlessly with advanced power conversion systems (PCS), ensuring high efficiency and reliability. These solutions are designed to meet the demands of both residential and commercial applications, offering unparalleled performance in renewable energy integration.

DC to AC power conversion remains a cornerstone of modern energy systems. It bridges the gap between renewable energy sources and the devices we rely on daily. Inverters play a pivotal role in this process, ensuring efficient energy transformation while maintaining compatibility with household appliances, industrial equipment, and electrical grids.

Choosing the right inverter requires careful consideration of efficiency, power requirements, and application-specific features. For example, configurations with 95% efficiency excel in low-power scenarios, while those with 85% efficiency suit high-power demands.

Whether powering a solar energy system or integrating with the grid, selecting the right inverter ensures reliability and efficiency.

Callout: DC to AC power conversion is not just a technical process; it’s a gateway to sustainable energy solutions. Take the time to evaluate your needs and choose an inverter that aligns with your goals.

FAQ

What is the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters produce smooth, grid-like AC power, ideal for sensitive electronics. Modified sine wave inverters generate stepped power, which may cause issues with certain devices. I recommend pure sine wave inverters for critical applications to ensure compatibility and protect your equipment.

How do I calculate the right inverter size for my needs?

Add the wattage of all devices you plan to connect. Include a 20–30% buffer for surges. For example, if your appliances need 1,500 watts, choose an inverter rated for at least 2,000 watts. This prevents overloads and ensures reliable operation.

Can I use an inverter with my solar panels?

Yes, but ensure the inverter matches your solar panel system’s voltage and power output. I recommend inverters with Maximum Power Point Tracking (MPPT) technology for optimal energy extraction. This feature maximizes efficiency, especially under varying sunlight conditions.

Are inverters safe to use in humid or outdoor environments?

Inverters designed for outdoor use often have high ingress protection (IP) ratings, such as IP65, to prevent moisture damage. I suggest installing them in shaded, ventilated areas and choosing models with robust enclosures for durability in harsh conditions.

How can I improve the efficiency of my inverter system?

Choose an inverter with a high efficiency rating, ideally above 95%. Regular maintenance, such as cleaning vents and ensuring proper airflow, reduces energy losses. Advanced features like MPPT technology also optimize performance, especially in solar energy systems.
