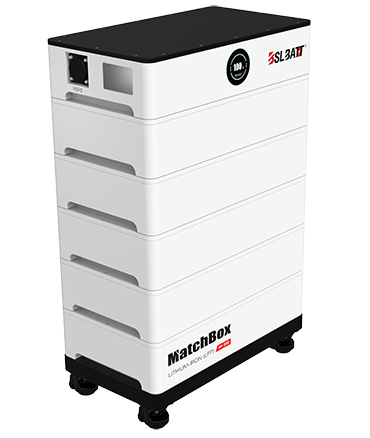

10kWh-37kWh HV Stacked <br> LiFePO4 Residential Solar Battery

10kWh-37kWh HV Stacked
LiFePO4 Residential Solar Battery

The MacthBox HVS is BSLBATT's high voltage battery solution for residential solar systems, utilizing Lithium Iron Phosphate electrochemistry, which can be scaled up with modular stacking to achieve large capacities of up to 37.27kWh. Equipped with BSLBATT's leading BMS and high voltage control system, it optimizes energy use and extends battery life to over 6,000 cycles at 80% DOD.

  • Description
  • Specifications
  • Video
  • Download
  • 10kWh-37kWh HV Stacked LiFePO4 Residential Solar Battery

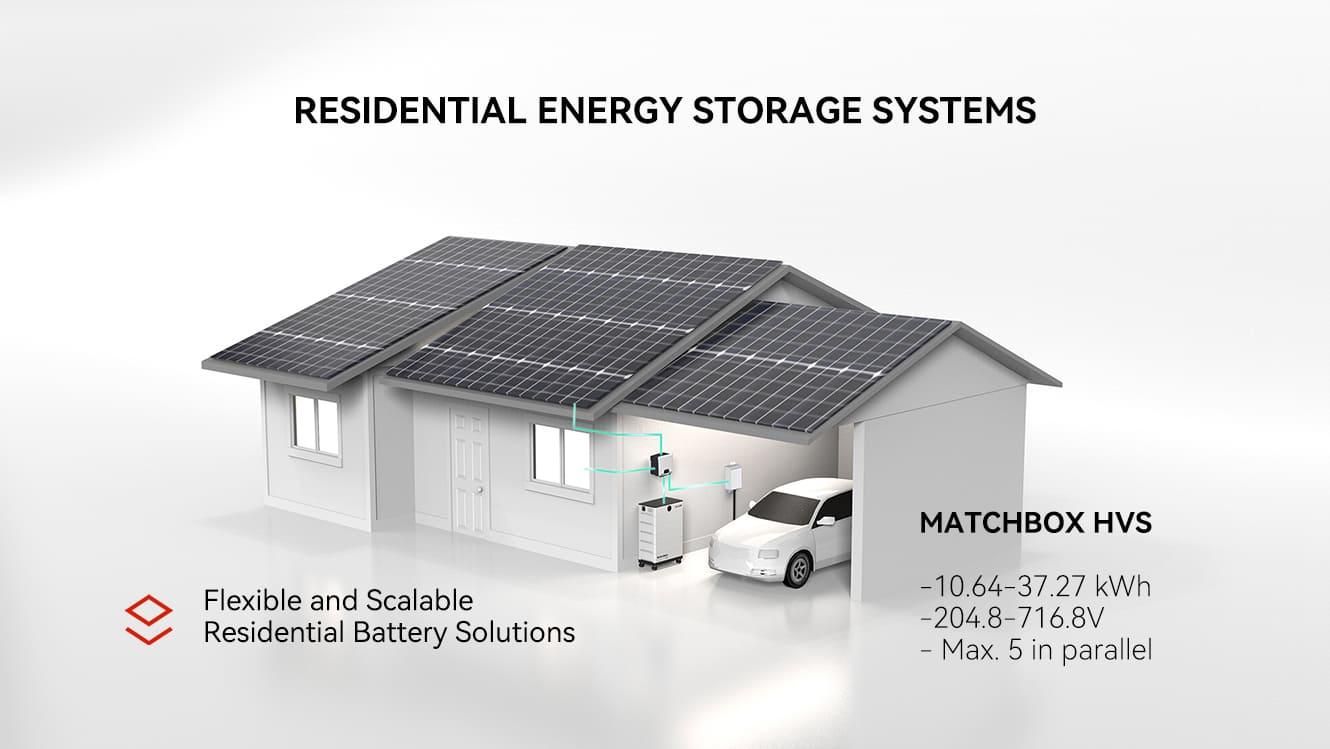

Transform Your Home into an Energy-Saving Powerhouse: HV Stacked Residential ESS

Whether AC-coupled or DC-coupled, the BSLBATT high voltage Residential battery system is perfectly compatible and, in combination with solar energy, can help homeowners achieve a wide range of functions such as saving electricity, home energy management.

This HV Residential solar battery is compatible with a number of high voltage 3-phase inverter brands such as SAJ, Solis, Hypontech, Solinteg, Afore, Deye, Sunsynk etc.

8(1)

Modular Design, Plug and Play

1 (5)

Built-in Aerosol Fire Extinguishers

1 (3)

Higher Energy Density, 106Wh/Kg

1 (6)

Easily Configure WIFI Via the App

1 (4)

Max. 5 MatchBox HVS in Parallel

7(1)

Safe and Reliable LiFePO4

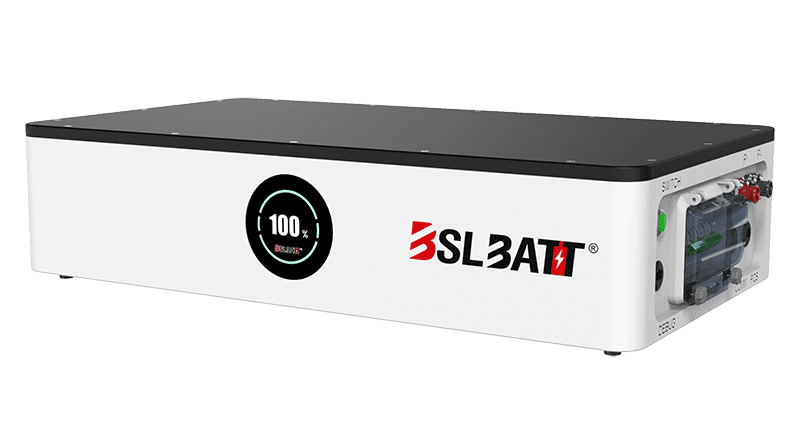

HV BMS

High Voltage Control Box

Leading Battery Management System



The BMS of MatchBox HVS adopts a two-tier management structure, which can accurately collect data from each single cell to the complete battery pack, and provide various protection functions such as over-charging, over-discharging, over-current, high temperature warning, etc., so as to prolong the service life of the battery system.



At the same time, the BMS is also responsible for a number of important functions such as parallel connection of battery packs and inverter communication, which are crucial to the stable operation of the battery.

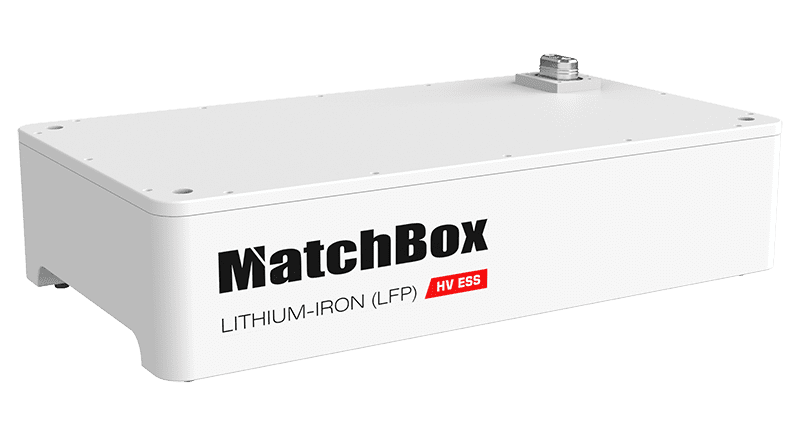

High Voltage LiFePO4 Battery

Scalable Modular Solar Battery



Consisting of Tier one A+ lithium iron phosphate batteries, a single pack has a standard voltage of 102.4V, a standard capacity of 52Ah, and a stored energy of 5.324kWh, with a 10-year warranty and a cycle life of over 6,000 cycles.

HV Battery bank
Residential lithium battery

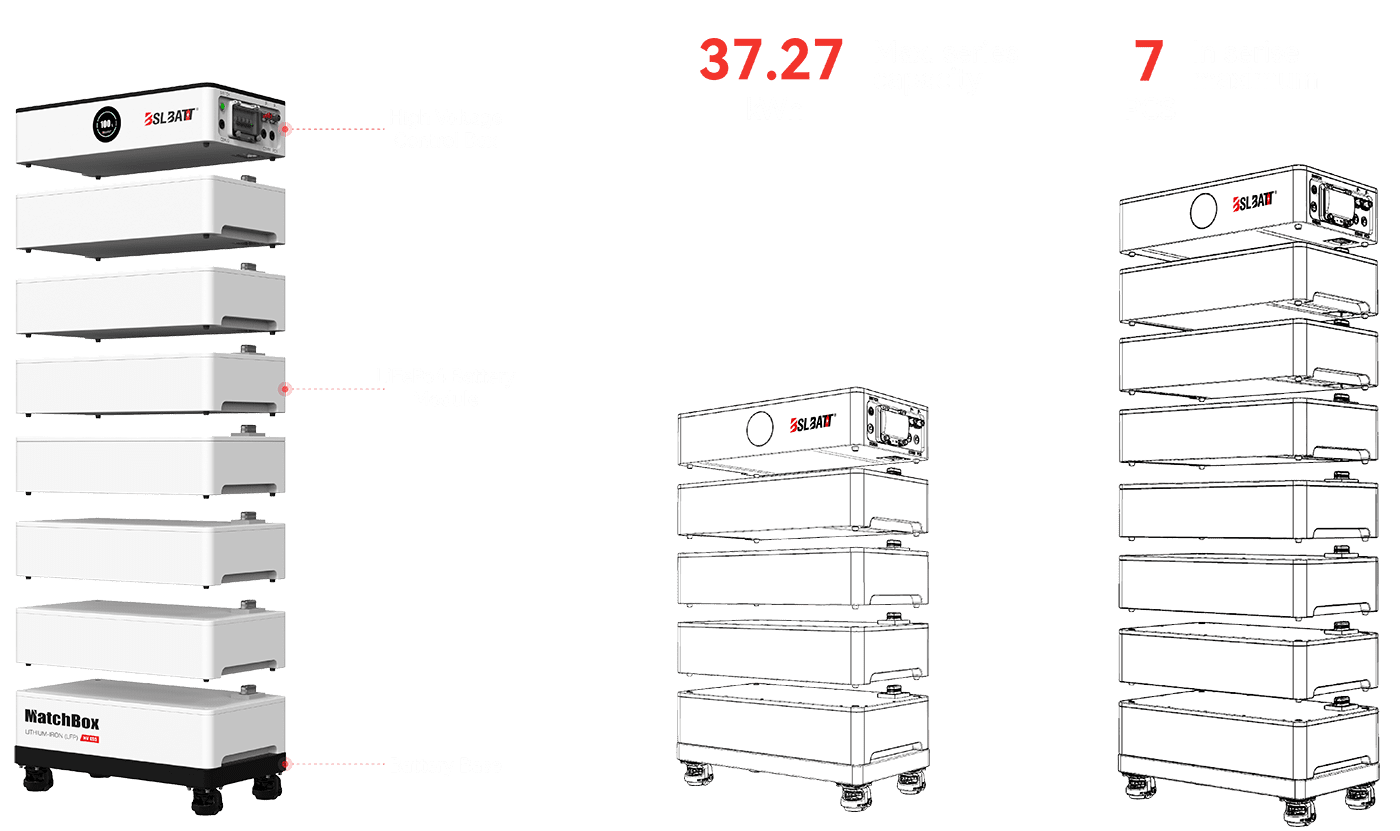

SCALABILITY AT YOUR FINGERTIPS

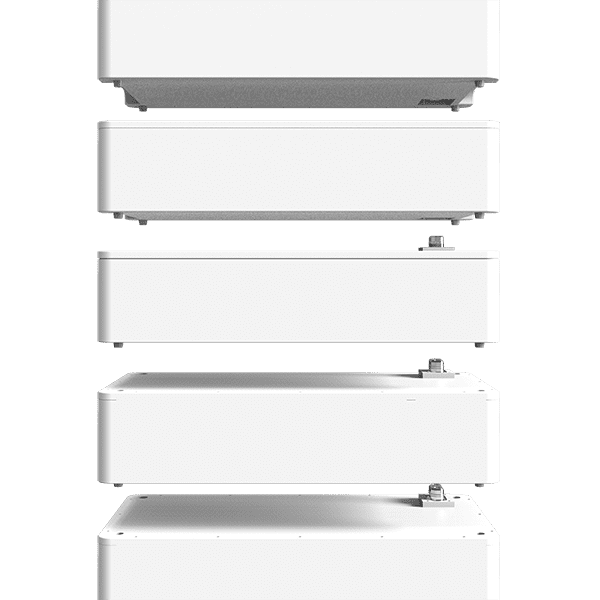

The plug-and-play design allows you to complete your installation in a more convenient and exciting way, eliminating the hassle of multiple wires between the BMS and batteries.



Simply place the batteries one at a time, and the socket locator will ensure that each battery is in the correct position for expansion and communication.

house battery system

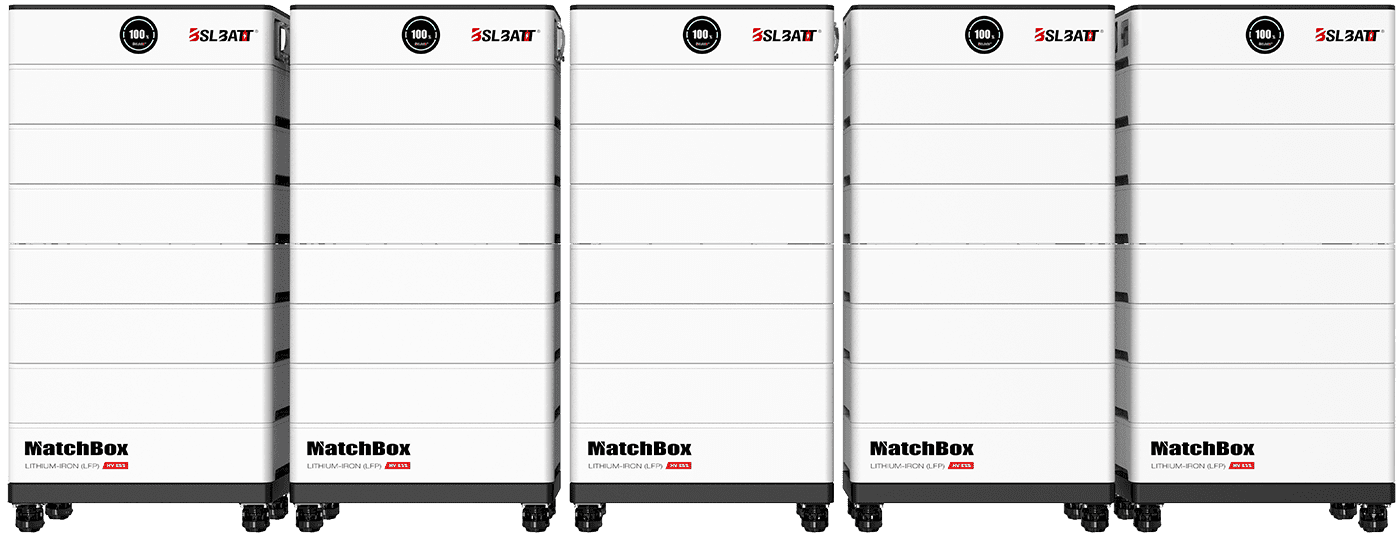

Maximum Storage Capacity 186.35 kWh

HV Residential battery storage systems
lifepo4 home battery
Model HVS2 HVS3 HVS4 HVS5 HVS6 HVS7
Rated voltage(V) 204.8 307.2 409.6V 512 614.4 716.8
Cell model 3.2V 52Ah
Battery model 102.4V 5.32kWh
System configuration 64S1P 96S1P 128S1P 160S1P 192S1P 224S1P
Rate power(KWh) 10.64 15.97 21.29 26.62 31.94 37.27
Charge upper voltage 227.2V 340.8V 454.4V 568V 681.6V 795.2V
Discharge lower voltage 182.4V 273.6V 364.8V 456V 547.2V 645.1V
Recommended current 26A
Maximum charging current 52A
Maximum discharging current 52A
Dimensions(W*D*H,mm) 665*370*425 665*370*575 665*370*725 665*370*875 665*370*1025 665*370*1175
Pack weight(kg) 122 172 222 272 322 372
Communication protocol CAN BUS(Baud rate @500Kb/s @250Kb/s)/Mod bus RTU(@9600b/s)
Host software protocol CAN BUS(Baud rate @250Kb/s) / Wifi / Bluetooth
Operation temperature range Charge:0~55℃
Discharge: -10~55℃
Cycle life(25℃) >6000 cycles @80% DOD
Protection level IP54
Storage tempearture -10℃~40℃
Storage humidity 10%RH~90%RH
Internal impedance ≤1Ω
Warranty 10 years
Service life 15-20 years
Multi-group Max. 5 systems in parrallel
Certification
Safety IEC62619/CE
Hazardous materials classification Class 9
Transportation UN38.3
