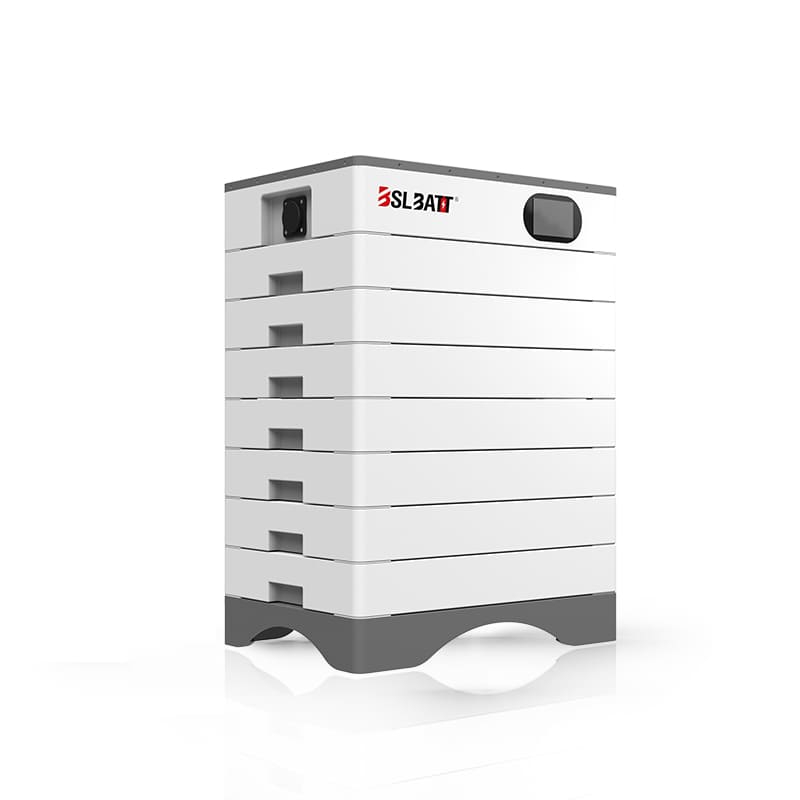

• High Voltage Storage Stackable LiFePo4 Battery 10-30kWh Home Solar System
    High Voltage Storage Stackable LiFePo4 Battery 10-30kWh Home Solar System

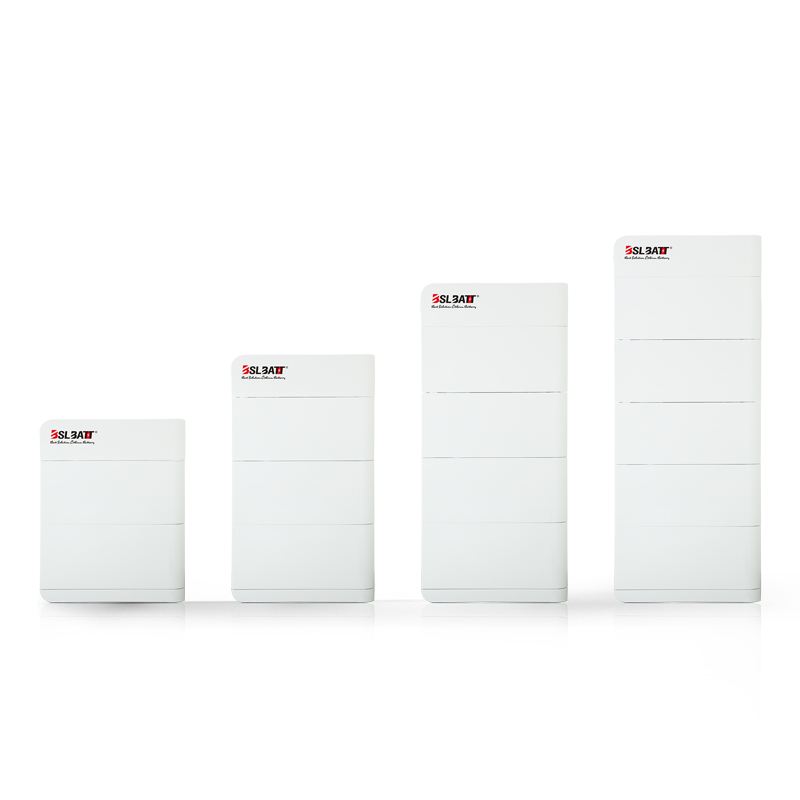

    10kWh / 20kWh /  25kWh / 30kWh


    The BSL-BOXHEV is the latest version of High voltage battery storage system provided by BSLBATT to increase the self-consumption rate of the PV system. The compact and slim design is the main feature of the BSL-BOXHEV, and the battery is connected in a plug-and-play way without extra wiring harnesses, reducing installation time!
    Inquire
    • BSL-BOXHEV
    • BSLBATT
    • Product Description
    Product Description

    10-35 kWh BSLBATT HV Storage B-BOXHEV


    The newly designed system provides easy connector to save valuable time for installaters. The stacking system provides flexible configurations from 204.8V to 614.4V voltage and 10.24 kWh to 30.72kWh capacity. The high power DC-coupled ESS battery of BSLBATT converts energy more efficiently than the AC-coupled ESS battery. As a result, BSL-BOXHEV can achieve higher efficiency.


    In addition, the BSL-BOX-HEV can be connected to your three-phase inverter to provide emergency power capabilities to protect your customer's home in the event of a sudden power outage, allowing your home to increase its independence from the grid and providing you with greater flexibility to change your system to meet demand in the future.


    WITH OR WITHOUT SOLAR, ALWAYS HAVE BACKUP POWER


    solar battery system home energy storage

    home lithium battery solar battery storage Product Highlights


    Module level auto-balancing

    Tier One, A+ Cell Composition

     10.24kWh expandable up to 30.72kWh.

    Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

    No Thermal Runaway with Fire Propagation

    No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling

    Extended Operating Temperature -4 to 140F

    98% Efficiency Rate

    Fast Charge & Discharge Rates

    ≥ 6000 Cycle Life with a 10 Year Warranty

    Cycle One to Several Times Per Day

    Modular, Scalable & Proven Performance

    UL rated battery pack.

    High voltage controller

    High Voltage Controller

    10kWh battery Modules

    10kWh LiFePo4 Battery Module


    home solar storage battery

    Plug in and Play


    BSLBATT BOXHEV HV battery offers an easier way to install, based on BSLBATT standard parallel kits, just plug in and play, the installation is complete.


    Max. 6 Modules in Series



    BSLBATT high voltage battery modules are integrated with slave BMS, keep sensoring the voltage and temperature of each individual cells, and balancing the cells during charge and discharge

    HV battery system

    The BSLBATT BOXHEV is the ideal energy storage solution for on-grid or off-grid solar installations. Lower your utility bill by avoiding the need to buy electricity at peak times with the BSLBATT Lithium Battery BOXHEV. With the BSLBATT 10kWh residential Battery bank, you can use more clean energy in a more efficient way. This makes you more independent of daylight and utility power.


    Specification


    BSL-BOXHEV Series
    Model BoxHEV-10 BoxHEV-15 BoxHEV-20 BoxHEV-25
    Nominal voltage 204.8V(64series) 307.2V(96series) 409.6V(128series) 512V(160series)
    Capacity 50Ah 50Ah 50Ah 50Ah
    Storage power 10KWh 15KWh 20KWh 25KWh
    Internal resistance (AC) ≤80mΩ ≤100mΩ ≤120mΩ ≤150mΩ
    Cycle life ≥6000cycles@80%DOD,25℃,0.5C ≥5000cycles@80%DOD,40℃,0.5C
    Design Life ≥10 years
    Recommended Charging Voltage 228V±2V 340V±2V 450V±2V 560V±2V
    Maximum Operating Current 100A
    Discharge Cut-off Voltage 180V±2V 270V±2V 350V±2V 440V±2V
    Charging Temperature Range 0℃~60℃
    Discharge temperature range -20℃~60℃
    Storage temperature range -40℃~55℃ @ 60%±25% relative humidity
    Size 630*185*930 mm 630*185*1265 mm 630*185*1600 mm 630*185*1935 mm
    Weight Approx:130kg Approx:180kg Approx:230kg Approx:280kg
    Communication method RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter
    Certification UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

    Strong & Durable Structure

    BSLBATT BOXHEV hv battery home lithium battery adopts the patented rhombus Tier One, A+ LiFePo4 Cell Composition. The whole internal assembly from cells, modules, BMS to components are screw fastening that presenting utmost safety and reliability.

    10kWh Powerwall battery

    Performance Characteristics

    solar battery cycle life lithium solar battery life
    48V lithium ion battery life home battery life



    The BSLBATT storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn’t shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.


    As one of the top lithium ion solar battery manufacturers, we can custom different specification batteries. Voltage: 12 to 48V; capacity: 50Ah to 600ah.
