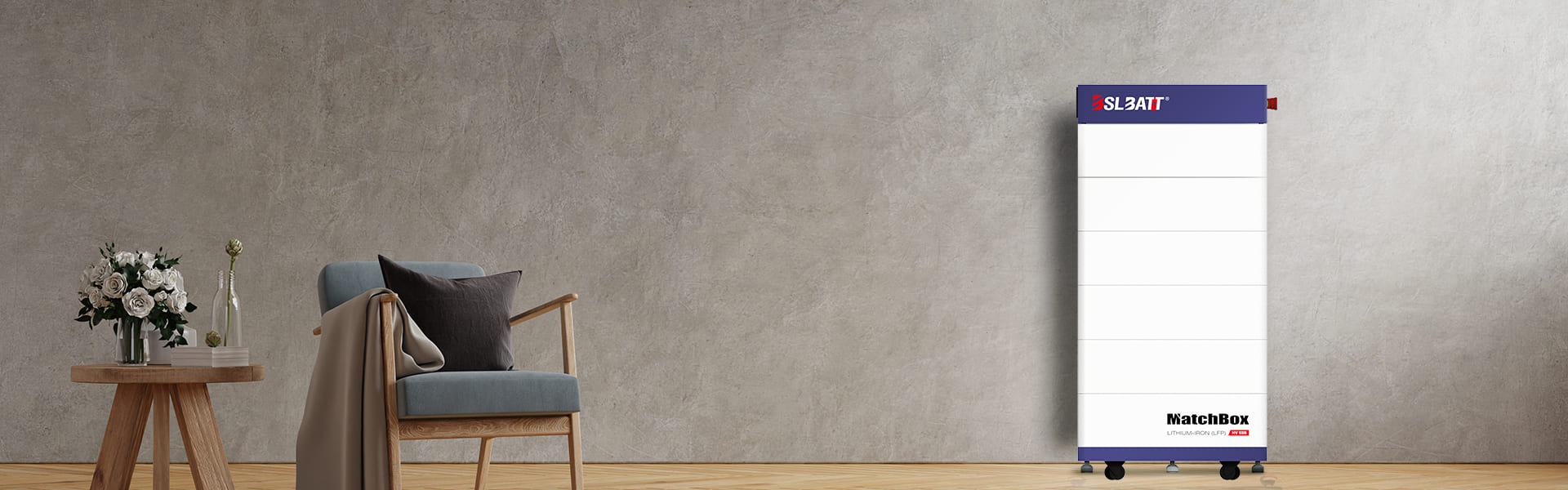

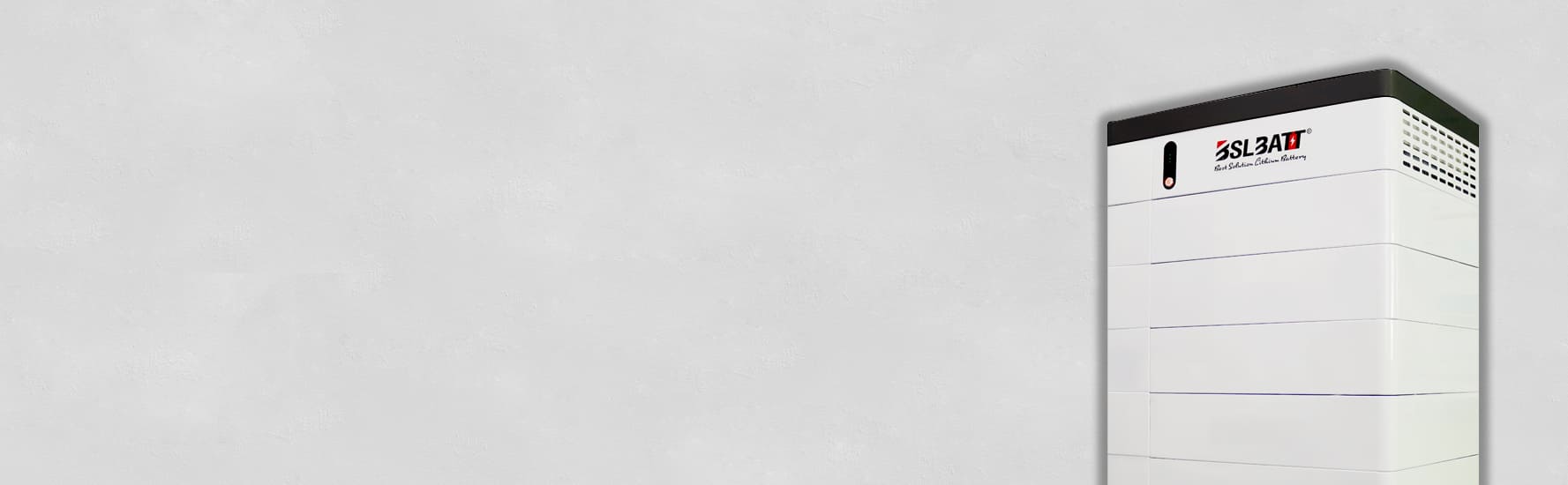

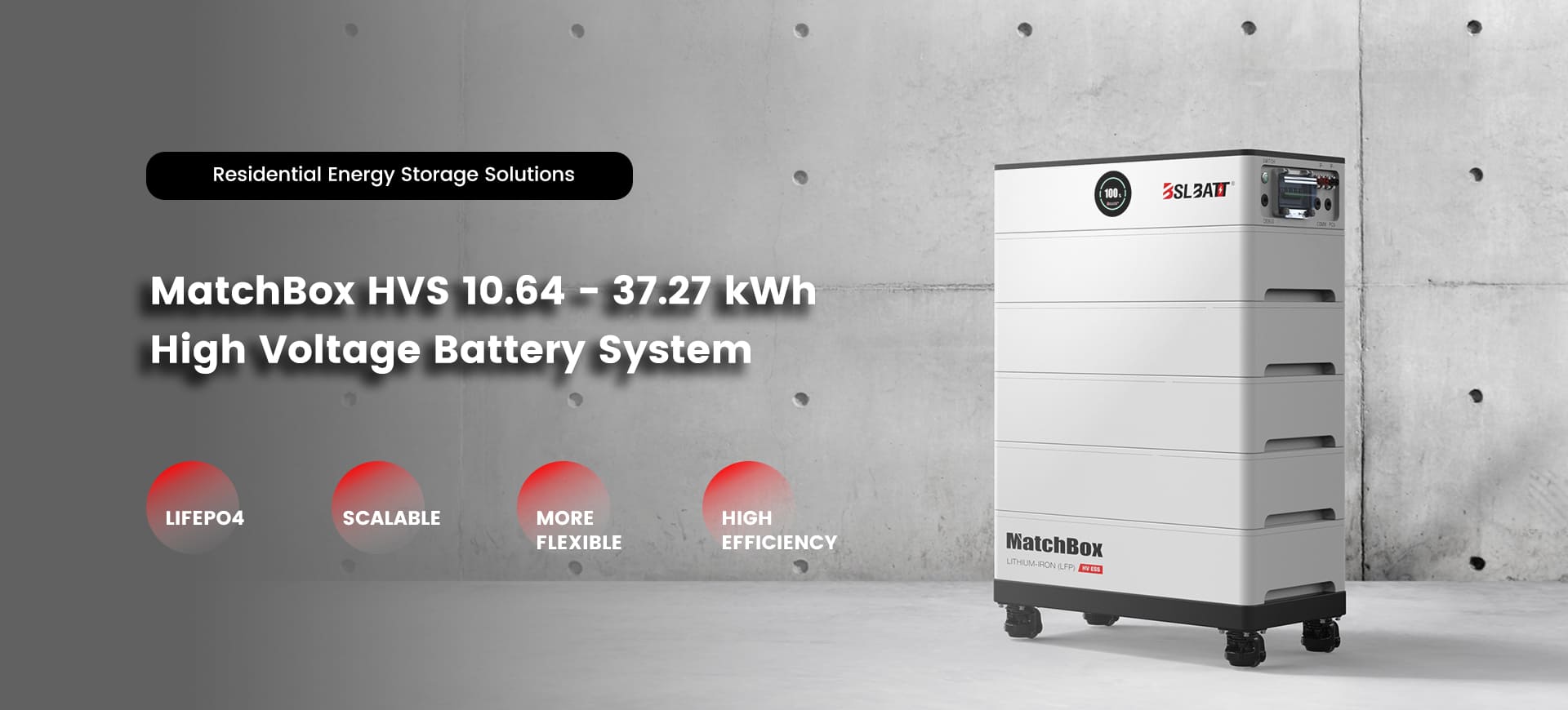

This is BSLBATT's most advanced high-voltage battery system designed for home energy storage, equipped with advanced features that provide households with efficient and reliable energy management solutions.
BSLBATT high-voltage battery system is an optical storage integrated machine product that supports four distinct interfaces, including photovoltaic, battery, grid-connected, and load. Its advanced on-grid switching function allows for seamless integration and management of energy from multiple sources, making it an optimal choice for households seeking an energy management solution that meets their specific needs.
Moreover, BSLBATT high-voltage battery system offers uninterrupted switching between off-grid and grid-connected modes, ensuring continuous access to reliable energy supply. The system provides full power output in the off-grid state, enabling households to have a steady and stable supply of energy. Additionally, its 100% balanced load access allows for the efficient distribution of energy throughout the household.
Model | MatchBox - 2 | MatchBox - 3 | MatchBox - 4 | MatchBox - 5 | MatchBox - 6 | MatchBox - 7 |
---|---|---|---|---|---|---|
Nominal DC Voltage | 204.8V | 307.2V | 409.6V | 512V | 614.4V | 716.8V |
Battery Capacity | 52Ah | |||||
Voltage Range(Vdc) | 180-230V | 268-350V | 358-467V | 448-584V | 537-700V | 627-817V |
Cell Model | 3.2V 52Ah / 32S1P | |||||
Energy (kWh) | 10.64 | 15.97 | 21.29 | 26.62 | 31.94 | 37.27 |
Dimensions (H* W* D) mm | 598*400*516 | 598*400*683 | 598*400*850 | 598*400*1018 | 598*400*1185 | 598*400*1353 |
Charging Current | 35Ah | |||||
Discharging Current | 45Ah | |||||
Discharge over Current | 50Ah | |||||
Communication protocol | CAN(500Kb/s) / RS485(9600b/S) Host software and RS485 | |||||
Net Weight (kg) | 123 | 169 | 215 | 261 | 307 | 353 |
