153 V - 1500 V High Voltage LiFePO4 Battey Pack

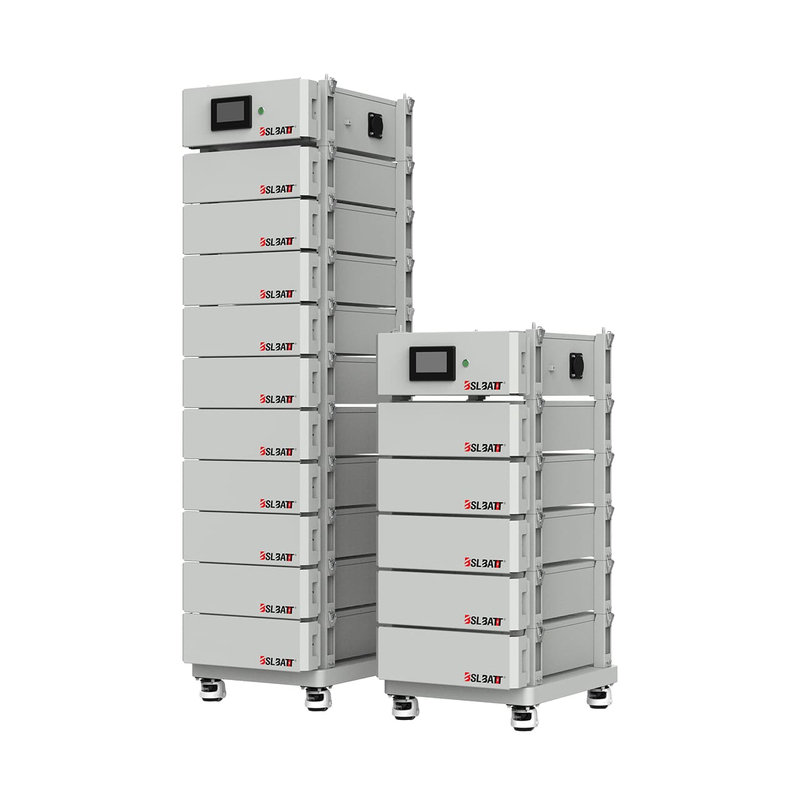

BSLBATT HV PACK is a rack-mounted battery system designed for high-voltage applications (three-phase residential systems, industrial and commercial energy storage, microgrids, high-voltage UPS), each pack is 51.2V 100Ah, by series connection, up to 1500 V. And the high-voltage box is equipped with GPS, WIFI, Bluetooth, etc., which allows for real-time monitoring of the battery's data and information, is Modular, lightweight, intelligent, easy to install and portable high voltage battery system.
Safe and reliable
• Redundant protection design for all-round protection
• High quality power output
• LiFePO4 electrochemical, safety and environmental protection, higher stability
High voltage and high efficiency design
• 153V - 1500V high voltage design
• High conversion efficiency, energy saving and environmental protection
• TI embedded design, very low standby power consumption
• Support well Hybrid inverter, off-grid inverter
Modular and stackable
• Can be connected in series to ensure high efficiency
• Well-connected to provide more power
• Parallel connection of up to 6 battery strings, max. 890.88 kWh
• Simple and flexible, adaptable to different scenarios
Multiple interfaces to support cloud-based system
• RS485, CAN and other communication interfaces
• Support remote online upgrade, simple maintenance
• Support cloud system, accurate to each group of electric core operation
• Support Bluetooth WiFi function
HV PACK Specification
| General Parameter | HV PACK 256 | HV PACK 512 |
| Nominal Voltage | 256V | 512V |
| Rated Capacity (Ah) | 100 | 100 |
| Cell Brand (LFP-3.2V) | EVE100AH | EVE100AH |
| System configuration | 80S1P | 160S1P |
| Battery single box number | 5 | 10 |
| Rate power | 25.6kWh | 51.2kWh |
| Charge Cut-off Voltage | 278.4V | 556.8V |
| Discharge Cut-off Voltage | 216V | 432V |
| Recommended Current | 50A | 50A |
| Maximum Charging Current | 100A | 100A |
| Maximum Discharging Current | 100A | 100A |
| Communication protocol | CAN / DRY | |
| Host software protocol | CAN (250Kb/s) | |
| Operation Temperature Range | Charge:0~55℃ Discharge: -20~60℃ | |
| Storage Temperature | 0~25℃ | |
| Number of Cycles | 6000 cycles @ 90% DOD | |
| Dimension | 476*660*1110mm | 476*660*1855mm |
| Control unit Type | 1600V 250Ah | |
| Warranty | 10 years | |
