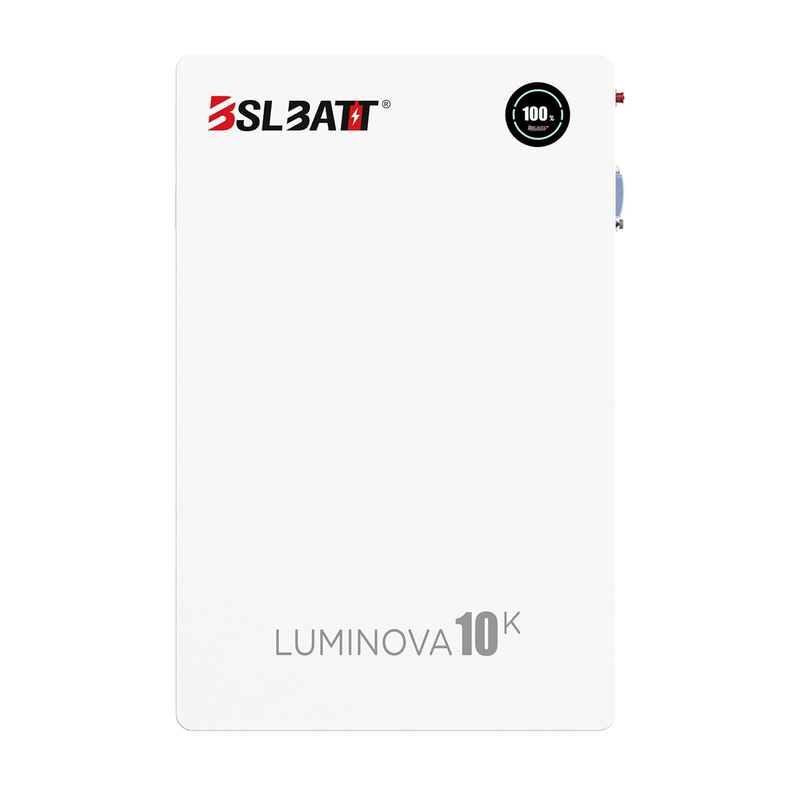

10kWh HV SOLAR BATTERY - Luminova10K
This 10kWh battery storage utilizes a different high voltage LiFePO4 scheme than 48V, and features sophisticated internals and components including multiple Tier One, A+ Cells and an intelligent control system, making it a rugged and efficient energy storage solution for residential solar applications. With its sophisticated design and unique blend of materials, the cell offers the optimal balance of performance, safety and longevity to meet the diverse energy storage needs of homeowners.
From storing excess solar energy for nighttime or low-light use to providing backup power in the event of a grid outage, this high-voltage solar battery meets a wide range of energy needs in the modern home. Its compatibility with different solar hybrid inverters and energy management systems further enhances its versatility, enabling seamless integration and optimized energy management of residential solar systems.
Features of Luminova10K
Safe and reliable
• Redundant protection design for all-round protection
• High quality power output
• LiFePO4 electrochemical, safety and environmental protection, higher stability
• IP65 protection level for reliable operation
High voltage and high efficiency design
• 204.8V high voltage design
• High conversion efficiency, energy saving and environmental protection
• TI embedded design, very low standby power consumption
• Support well high-voltage single-phase or three-phase inverters
Modular and stackable
• Can be connected in series to ensure high efficiency
• Well-connected to provide more power
• Parallel connection of up to 6 HV Battery Pack strings, max. 61.44 kWh
• Simple and flexible, adaptable to different scenarios
Multiple interfaces to support cloud-based system
• RS485, CAN and other communication interfaces
• Support remote online upgrade, simple maintenance
• Support cloud system, accurate to each group of electric core operation
• Support Bluetooth WiFi function
Specification of Luminova10K
| Model | Luminova 10K |
| Nominal Voltage(V) | 204.8 |
| Rated Capacity(Ah) | 52 |
| Cell Model(LFP-3.2V) | 3.2V 52Ah 32S1P |
| Dimensions | 1000*650*170 |
| Pack Configuration | 1P64S |
| Rate Power(kWh) | 10.64 |
| Voltage Pange(Vdc) | 180-230V |
| Float Charge Voltage | 220V |
| Charging Current | 35A |
| Max Discharging | 45A |
| Chargie Over Current | 40A |
| Dischargie Over Current | 50A |
| Weight | 118.4KG |
| Internal Impedance | ≤200mΩ |
| Communication Protocol | CAN(500Kb/s)/RS485(9600bS)/WIFI/4G/Bluetooth |
| Host Software | RS485 |
| Operation Temperature Range | Charge:0~55℃ Disharge:-10~55℃ |
| Storage Temperature | 0℃~25℃ |
| Cycle Life | ≥6000 Cycles@25℃，80%DOD，60%EOL |
| Protection Level | IP65 |
| Safety | CE/UN38.3 |
| Cell | IEC62619/UL1973/CE |
| Battery Life | ≥15 years |
| Warranty | 10 years |
